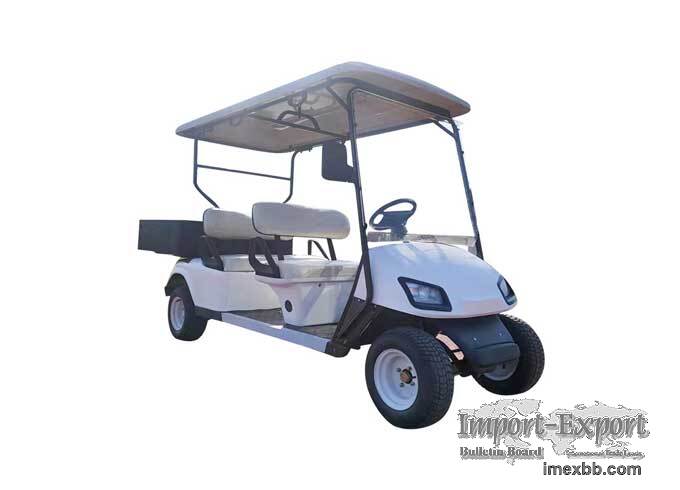

4 Seater Electric Utility Golf Pickup

There are two rows of front seats and a small bucket in the rear for up to four
people. Equipped with a high-power electric drive system at the same time, the
maintenance and use costs are extremely low. The kegs can hold farm implements,
so they are ideal for use on farms, construction sites, factories, docks, and
industrial parks.

Specification of 72 Volt Electric UTV 4-Seater Electric Utility Golf Pickup
Technical Parameters
Overall Dimension 3100*1200*1800mm
Passengers Capacity 4
Max. Speed 40km/h & 25mph
Max. Travelling Range 80-100km
Slope Climbing Capacity 30%
Turning Radius 4m
Ground Clearance 300mm
Brake Distance ≤4m
Wheelbase 1670mm
Front/Rear Tread 950/1000mm
Weight 500kg
Electric System
Motor AC, 48V, 5kW
Controller 48V, 450A
Battery Type Lead Acid, 150Ah, 8V*6pcs
Charger Intelligent high-frequency car charger
Charging Time 8 hours
Steering “Rack & Pinoin” Steering
Motivation Control
Braking System Front Disc Brake, Rear Drum Brake, EMB system
Front-axle And Suspension Independence suspension
Rear-axle and suspension Integral rear axle
Tire 215/35-12, with alloy rim
Exterior
Dashboard LCD instrument, Multifunction, show time, speed, driving range,
battery capacity, etc
Light Front & rear combination LED lights
Seat Bus cold foam sponge + high resilience PU leather fabric
Body Material Steel frame + ABS engineering plastic molding material

As one of electric golf car company, we have types of electric golf car for
sale, if you have needs, please contact us.
