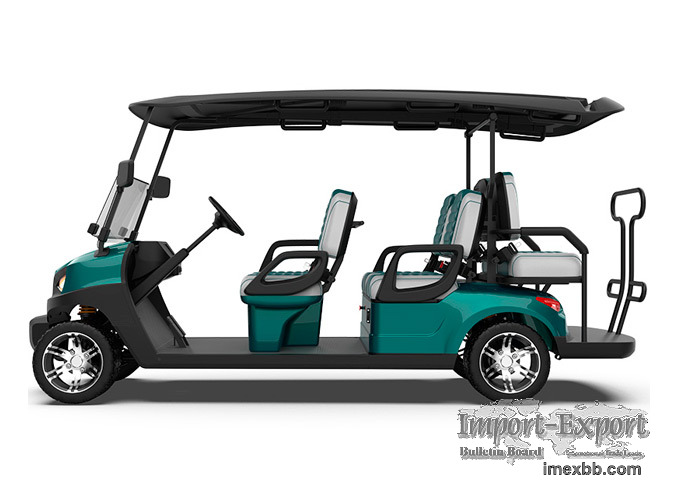

4+2 Seater Golf Cart

Front Facing 4 Seat Golf Cart There are three rows of seats for up to six
people. The last two rows are back to back. Low chassis, convenient up and
down, small turning radius, flexible operation, and the use of wide vacuum
tire, compound front suspension system, excellent damping performance, smooth
driving, comfortable driving; The rear suspension adopts leaf spring shock
absorption with high rebound and high load spring design, the vehicle load
performance is superior, the smooth and bumpy driving force is small,
comfortable to ride.

Specification of 4 forward facing seat golf cart
Technical Parameters
Overall Dimension 3500*1200*1800mm
Passengers Capacity 6
Max. Speed 40km/h & 25mph
Max. Travelling Range 80-100km
Slope Climbing Capacity 30%
Turning Radius 4m
Ground Clearance 170mm
Brake Distance ≤4m
Wheelbase 2400mm
Front/Rear Tread 870mm
Weight 580kg
Electric System
Motor AC, 60V/48V, 4kW
Controller 60V, 350A
Battery Type Lead Acid, 100Ah, 12V*5pcs
Charger 85V-270V, intelligent high-frequency car charger
Charging Time 8 hours
Steering “Rack & Pinion” Steering
Motivation Control
Braking System Self-adjusting, rear-wheel mechanical drum,
Foot-operated parking, multi-lock
Front-axle And Suspension Leaf spring front suspension
Rear-axle And Suspension Integral rear axle
Tire 205/50-10, with steel rim
Exterior
Dashboard Electricity meter, forward and backward switch
Seat Bus cold foam sponge + high resilience PU leather fabric
Body Material Steel frame + ABS engineering plastic molding material

As one of electric golf carts manufacturers, we have types of golf cart
electric for sale, if you have needs, please contact us.
