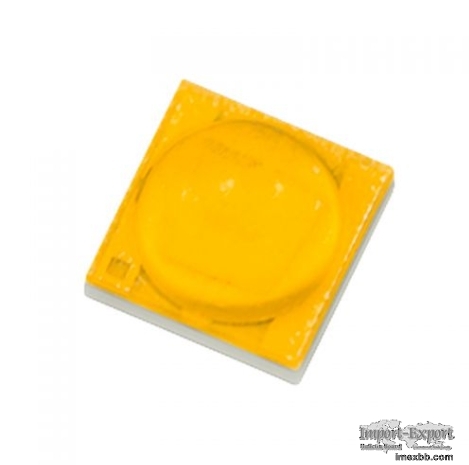

3W Flip Chip 3535 SMD LED White
3W Flip Chip 3535 SMD LED White
Flip Chip White Color 3W 3535 SMD LED for Industrial Lighting
Surface Mount Technology 3535 package for cost-effective, compact high power
LEDs with small size high flux density LED Diodes. The good raw material
(silicon lens, ceramic base) enable the 3535 SMD LED with fast heat
dissipation, low thermal resistance and high reliability.
Product Features
• High luminous efficacy
• Ceramic base with high heat conductivity
• Flip Chip Technology, no gold wire soldering
• Operating current 350-700mA, up to 1000mA
• >50000Hrs
• RoHS compliant
• Available in CRI70+, 80+, 90+
• W R G B Y A UV IR a variety of colors for choice
• Outdoor landscape lighting, stage lighting, smart lighting, etc
Product Specification
Color CCT (K) VF
(V) IF
(mA) CRI Luminous Flux
(lm) Part Number
Warm White 2600-2900 2.8-3.4 700 80 220-240 MN-
FC3535C273220B
Warm White 2900-3200 2.8-3.4 700 80 240-260 MN-
FC3535C303240B
Natural White 3800-4200 2.8-3.4 700 70/80 260-280 MN-
FC3535C403260A/B
Pure White 4800-5200 2.8-3.4 700 70/80 280-300 MN-
FC3535C503280A/B
Pure White 5500-6000 2.8-3.4 700 70/80 280-300 MN-
FC3535C573280A/B
Cool White 6000-6500 2.8-3.4 700 70/80 270-290 MN-
FC3535C603270A/B
)
