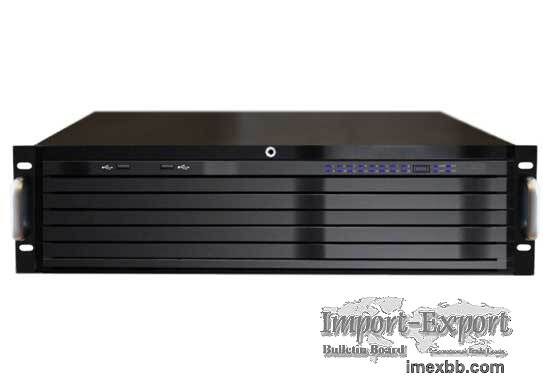

3U16Bay Economical SYS-6038B-T Storage Server

SYS-6038B-T is an enterprise-class 3U16Bay rackmount storage server, which uses
Intel's 6th generation Skylake chipset, supports Intel's 64-bit multi-core
processor, and its single machine supports 16 large-capacity SATA hard disks,
Intel's dual-Gigabit network, and the chassis flip design. The hard disks are
easy to plug and replace, which can satisfy massive data processing and large-
capacity video storage. The performance of the whole machine is improved by 20%
compared with that of the previous generation, and the patented product
incorporates the simplified design concept, which reduces the purchase cost of
users on the basis of fully meeting the performance requirements of users. 16
bay server is suitable for security monitoring center, NVR video storage
service, etc.
SPECIFICATION OF 3U16BAY ECONOMICAL SYS-6038B-T STORAGE SERVER

Processor/chipset
CPU
Intel LGA1151 platform, which supports 6th generation Core series CPU
Chip Set
B150
System Memory
Internal Storage Capacity
X288-pin ddr4 DIMM slot, supporting up to 32GB NON ECC DIMM
Specification DIMM
DIMM: 16GB, 8GB, 4GB
Save
System Disk
1 mSATA 1 standard 7Pin SATA
SATA disk
16 plug-in SATAIII interfaces
Input/output/control interface
LAN
2 standard RJ45 Gigabit interfaces (lightning protection)
USB
Two USB2.0 (front) and two USB3.0 (back)
VGA
1 x VGA（DB15）
GPIO
4 in and 4 out
COM
3 RS-232(DB9)
AUDIO
1 MIC input, 1 line output, 3.5mm jack
Reset
1 reset button (rear)
HDMI
2 x HDMI
Case
Type
U 3U19-inch chassis, 16 slots of removable hard disk, front panel with lock
Measure
437mm (width) 143mm (height) 490mm (depth)Í143mm（high）Í490mm（deep）
Weigh , t
≤15kg (excluding hard disk)
Power Supply
Rated Power
400W MAX.
Input
AC 100-240V~/6-3A/ 60-50Hz
Certificate
80PLUS 、RoHS、CCC、CE、FCC
Equipment Environment
Temperature
Operating temperature: 0°to 50°C non-operating temperature:-40 to 70°C.
Humidity
Operating relative humidity: 8% to 90% (non-condensing) and non-operating
relative humidity: 5 to 95% (non-condensing)

HIGHLIGHTS OF 3U16BAY ECONOMICAL SYS-6038B-T STORAGE SERVER

Intel Skylake B150 chipset is adopted, which supports Intel Skylake series
multi-core processors. The performance is improved by 20% compared with that
before, and the power consumption is lower;

Two DDR4 DIMM memory slots are provided, and the memory can support up to 32gb
non-ECC DIMMs;

PCI-E/Mini PCI-E expansion slot is provided;

The storage backplane adopts SATA controller, which supports hot plug of 16 3.5
"hard disks and large-capacity hard disks;

Intel® dual gigabit network port;

Support USB3.0, which can backup data to mobile storage at high speed;

Modular design of controller, no cable in host interface, high reliability and
easy maintenance;

Support disk grouping power-up;

Support hardware watchdog;

Perfect ESD protection and lightning protection;

Patented chassis is designed to facilitate disk replacement;

Support Windows and Linux systems, provide system management API resources, and
realize customization on demand.

If you want to know more about 3u storage chassis, please contact us.

As a leading brand of IoT hardware design solutions, JWIPC IOT hardware
companies has a one-stop hardware solution of "Terminal-Edge-Cloud-Network",
including digital signage players, embedded motherboards, embedded PC, all-in-
one PC, edge computing, servers, switch Computer, etc. product line. JWIPC
focuses on the R&D and production of IoT hardware, has a fully independent R&D
center, and its R&D personnel has rich R&D experience. Wholly-owned
manufacturing plant to ensure product delivery and quality.

Minimum Order: 10 sets
