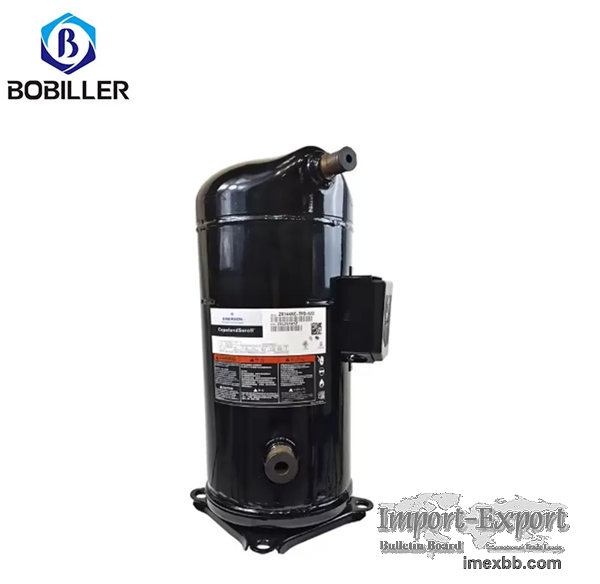

3HP Copeland Scroll Compressor ZR36KC-TFD-522

Copeland Scroll compressor axial and radial flexure technology ensures
excellent reliability and high efficiency of the compressor.
Wide range of product capacities.
Low recirculation rates.
Excellent resistance to liquid hammer.
Low noise and vibration.
Low LCCP (Life Cycle Performance).
Excellent refrigeration energy efficiency through double and triple parallel
connection.
Technical parameters
Model Number Nominal Horsepower Cooling Capacity Input Power
Current Cop EER Displace Ment Oil injection volume Net weight
Blocking Current Noise sound power
HP (W) (Btu/h) (W) (A) (W/W) Btu/Wh cc/Rev. (L)
(Kg) (A) （dBA）
ZR36KC-TFD-522 3 8880 30300 2684 4.7 3.31 11.3 49.5
1.12 30 40 68

Click to Enlarge
