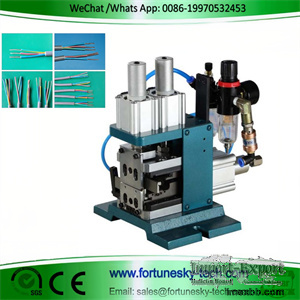

3FN Pneumatic Wire Stripper Twister

The 3FN Pneumatic Wire Stripper and Twister: A Multi-Functional Workhorse for Wire
Processing
The 3FN Pneumatic Wire Stripper and Twister is a powerful and versatile benchtop machine
designed to streamline your wire processing workflow. This 2-in-1 tool tackles both stripping
and twisting tasks with exceptional efficiency, making it ideal for various applications.

Multi-Functional Efficiency:

Stripping and Twisting: Combines stripping and twisting functionalities into a single machine,
saving time and effort compared to using separate tools.
Broad Wire Compatibility: Processes a wide range of multicore wires commonly used in
power cords, shielded wires, data cables, telephone cables, Ethernet cables, ribbon cables,
and more.
Wide Wire Gauge Range: Handles wires from fine 32AWG to thicker 18AWG, and even
accommodates wires exceeding 1.8mm in diameter.
Technical Specifications:

Model No.: 3FN
Wire Size: AWG18 - AWG32 (and wires exceeding 1.8mm diameter)
Voltage: AC220V/50Hz
Stripping Length: Single Cutter: 25mm, Double Cutters: 1.5-5.0mm
Production Rate: 1-10 pcs/time (AWG18-AWG32)
Air Pressure: 4.0-7.5 Kg
Dimensions: 320mm x 230mm x 300mm
Net Weight: 15 Kg
The 3FN Pneumatic Wire Stripper and Twister is a valuable asset for anyone who needs to
efficiently process multicore wires. This versatile machine offers a combination of stripping
and twisting functionalities, broad wire compatibility, and a comfortable production rate,
making it a perfect solution for various applications on your workbench.

Minimum Order: 1 pieces
