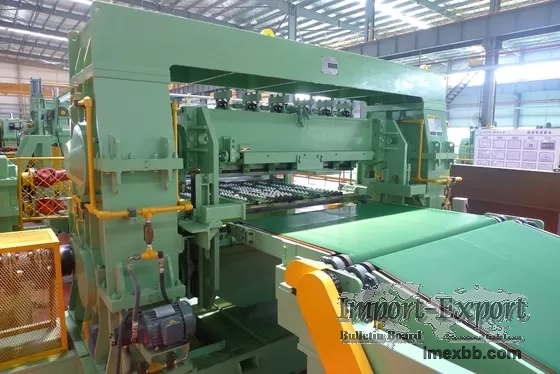

380V Steel Coil Cutting Machine

Product Description
Flying Shear Machine Coil Shearing Machine Hydraulic Shearing Machine

This Cut to Length Line is used for the metal plate decoiling, slitting and
winding into several volumes needed width coil plate. Suitable for processig of
cold rolled and hot rolled carbon steel,silicon steel, tinplate, stainless
steel and the surface of all kinds of metal plate after plating. The Slitting
Line PLC control, human-machine interface, according to a high degree of
automation,simple operation and reliable.

It is suitable for processing cold-rolled and hot-rolled carbon steel, silicon
steel, tinplate, stainless steel and various metal materials after coated zinc
on surface.



Composition:

Coil car
Uncoiler
Head straightener
Coarse leveler
Loop
Vertical roller device
Fine leveler
Cut shear
Delivery conveyor
Plate stacker
Hydraulic system
Electric control system
Bolts and buried parts
Material SS,CR,HR,GI,AL,Copper etc. Model Number 0.3~2.*1100
Coil width 1100mm Certificate CE, ISO 9001
Power 15T Speed 0-100m/min
Coil max weight 90kw Cutting accuracy 1.Cutting 0.3mm
2.Acc/decelerate 0.5mm
Monthly production 500-4000T MOQ 1 Unit

1. Specifications:

Technical Parameters of roll slitting machine:

a. applied to : HR,CR

b. Tensile strength:b≤500Mpa,S≤300Mpa

c. thickness:0.5-2.0mm

d. width:500-1500(Max)

e. coil ID: 508mm

f. coil OD:1600mm(Max)

g. weight :15T(Max)

h. diameter of leveling rollers: 65mm

i. distance of leveling rollers:70mm,

j. material of leveling roller:GCr15,hardness:HRC55-60

k. total weight of machines:around 30T

2. Finished products parameters:

a. diagonal tolerance:≤±1mm/2000mm

b. length tolerance:≤±0.5mm/2000mm

3. Other parameters :

a. power :380V/50Hz/3Ph

b. line speed:0-60m/min

c. capacity :around 100Kw

d. area of the whole production line(about) 25m(L)X7m(W)

e. people of operation: 1 technician and 2 general workers

f. color of the machines: grass green
