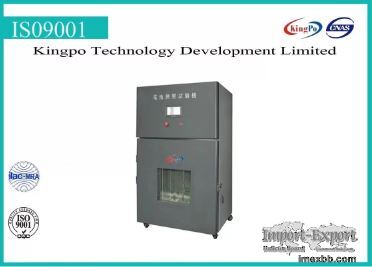

380V 50Hz Rechargeable Battery Tester Crush Space 300 * 300 * 300mm

This device is a new test chamber combined with temperature test chamber and
crush test chamber. This device is design and manufactured accord to
international standards UN38.3, IEC62133, IEC60086-4 etc., can simulate a
temperature test environment, can also monitor detect the test result under
this environment. It is a good choice for battery, capacitors, electronic
products simulate test equipment.

Crush force system
Travel limit device
Voltage acquisition system
Temperature control system

Crush force: 1-19.6KN (g=9.81N/kg)

Crush Speed: 1-20mm/s

Speed error: ±1%

Crush space: 300 * 300 * 300mm

Crush surface: diameter 150mm

Crush force: 1-19.6KN (g=9.81N/kg)

Force error: ±1%

Displacement error: ±0.5%

Drive: hydraulic (L-HM46 oil)

Motor: servo motor

Test temperature: 0-100 centigrade

Temperature wave: ±0.5 centigrade

Temperature rise: 3 ℃ / min

Temperature cooling: 1 ℃/min

Voltage measure range: 0-50V

Voltage resolution: 1mV

Voltage acquisition frequency: max. 110Hz

Test time: 0-99hour

Data output: RS232

Language: En & Simplified Ch

Power supply: 380V 50Hz, 1.5KW

Plug: 5 round pins plug
