380m3/H High Air Flow Mini Industrial Air Blower 6Kpa 48VDC Brushless Cent

Product Description
380m³/h High air flow mini blower



Brand name:Wonsmart High pressure with dc brushless motor
Blower type: Centrifugal blower Applicable Industries: Manufacturing Plant
Electric Current Type: DC Blade Material: plastic
Mounting: Ceiling blower Voltage: 48vdc
Place of Origin:Zhejiang, China Noise Level:85dba
Certification: CE, RoHS,REACH,ETL Warranty: 1 Year
After-sales Service Provided: Online support Static pressure: 6kPa
Controller: external Speed Level:12000-15000rpm
Housing material:PC Weight: 1.5kgs
Motor type:Three Phase DC Brushless Motor Unit size: D155mm*H150mm

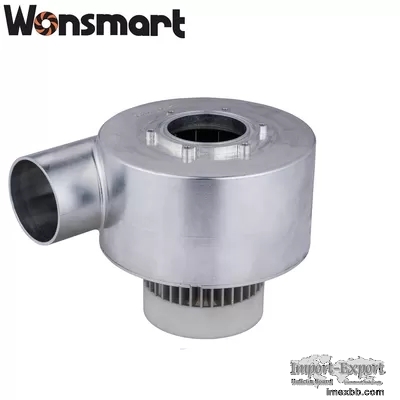

380m3/H High Air Flow Mini Industrial Air Blower 6Kpa 48VDC Brushless
Centrifugal Fan 0380m3/H High Air Flow Mini Industrial Air Blower 6Kpa 48VDC
Brushless Centrifugal Fan 1





PRODUCT PARAMETERS



Motor Type Three Phase Brushless
Bearing Type NMB Ball bearing
Motor Pole pairs 2
Resistance-phase to phase 0.18~0.2[ohm]
Induction-phase to phase 0.55~0.58mH
Insulation Class Classs F
Protect Class IP51
Operating Temperature range -20 deg.C~+60.deg.C(No Condensation)
Service Life time(MTTF): >10,000hours (under 25 degree C)
Hall Sensor 120
Speed @hall sensor frequency 1HZ=30r/min
48V version choose 24VDC-15A power supplier




Product Drawing



380m3/H High Air Flow Mini Industrial Air Blower 6Kpa 48VDC Brushless
Centrifugal Fan 2





PERFORMANCE CURVE



WS155150-48-150-X300 blower can reach maximum 380m3/h airflow at 0 kpa
pressure and maximum 6kpa static pressure. It has maximum output air power
when this blower run at 3kPa resistance if we set 100% PWM. It has maximum
efficiency when this blower run at 6kPa resistance if we set 100% PWM. Other
load point performance

refer to below P-Q curve:

380m3/H High Air Flow Mini Industrial Air Blower 6Kpa 48VDC Brushless
Centrifugal Fan 3





Payment&Delivery



Sample Payment preference: paypal / bank account;

Sample delivery time: 3-5 days;

Sample delivery method: Fedex, UPS, DHL;

Sample delivery cost: 20-45 USD for 1 kg;

Mass Production payment: Bank account;

Mass production delivery time: 15-30 days;

Mass production delivery method: Fedex, UPS, DHL, Ocean shipping;.





Applications



One of the key features of the Wonsmart air blower is its large outlet that
is capable of discharging air at high velocities. With a rated voltage of
48VDC and a speed level ranging from 12000rpm to 15000rpm, it generates an
air flow of up to 380m3/hour at a pressure of 6kpa. This high air flow rate
is crucial in diffusing and ventilating gas within the fuel cell, and also
results in improved combustion processes.

The Wonsmart air blower's ability to operate effectively at high current
levels ranging from 5A to 12.5A, means that it can deliver powerful and
consistent performance even under the most demanding conditions.
Additionally, it has a noise level of 85dba, which is relatively low and
ensures a comfortable and safe working environment.

Another notable attribute of the Wonsmart air blower is the material
utilized. The blade is made of aluminum, ensuring durability and
lightweight, making it an ideal tool for a range of applications. This
centrifugal blower's high reliability and superior performance have
established it as the go-to tool for professionals working with fuel cells.

In summary, the Wonsmart air blower is a reliable and efficient tool for
anyone in need of a high-performance air blower. Specifically designed for
the fuel cell industry, it can provide superior ventilation and diffusing of
gas, leading to better combustion processes. With its powerful, lightweight,
and durable design, it is an essential tool for professionals in the fuel
cell industry.





DC Brushless Blower Advantage



(1) WS155150-48-150-X300 blower is with brushless motors and NMB ball
bearings inside which indicates very long life time; MTTF of this blower can
reach more than 10,000 hours at 20 degree C environmental temperature.



(2) This mini blower needs no maintence



(3) This blower drived by a brushless motor controller have many different
control functions such as speed regulation,speed pulse output,fast
acceleration, brake etc.it can be controlled by intelligent machine and
equipment easily



(4) Drived by brushless motor driver the blower will have over current,
under/over voltage,stall protections.





How To Use The Blower Correctly



This blower can run at CCW direction only.Reverse the impeller running
direction can not change the air direction.



Filter onto the inlet to protect the blower from dust and water.



Keep the environmental temperature as low as possible to make the blower
lifetime longer.





What Is Centrifugal Fan?



A centrifugal fan is a mechanical device for moving air or other gases in a
direction at an angle to the incoming fluid. Centrifugal fans often contain
a ducted housing to direct outgoing air in a specific direction or across a
heat sink; such a fan is also called a blower, blower fan, biscuit blower,
or squirrel-cage fan (because it looks like a hamster wheel). These fans
increase the speed and volume of an air stream with the rotating impellers.





FAQ



Q: May I use this blower for Medical device?

A: Yes, this is one blower of our company which can be used on Cpap and
ventilator.



Q: What is the maxmum air pressure?

A: As it shown in the drawing, the maxmum air pressure is 6 Kpa.



Q:Are you a trading company or a manufacturer?

A: We are a manufacturer.



Q:When can I get the quotation?

A: We usually quote within 24 hours after we get your inquiry.lf you are
urgent to get the price, please send the messageon trade management or call
us directly.



Q:Can you make a motor with custom specifications?

A: Yes, actually that is what we do most of the time.



Q:What is the MOQ ?

A:1~10 pcs for sample order, 1050 pcs for trial order,100pcs for bulk order.



Q:Do you have blowers and motors in stock?

A:Some regular procucts we have stock.



Q:Can I ask you for help if I know nothing about motor?

A:Yes, our pleasure. We are nice people with big hearts.



Q:Can we type our brand on it?

A:Yes of course.



Q:Where is your loading port ?

A:Ningbo Port, Shanghai Port, China.



Q:What is your production capacity?

A:About 80000 PCS per year.



Q:What is your main market?

A:Eastern Europe Southeast Asia, South America.
