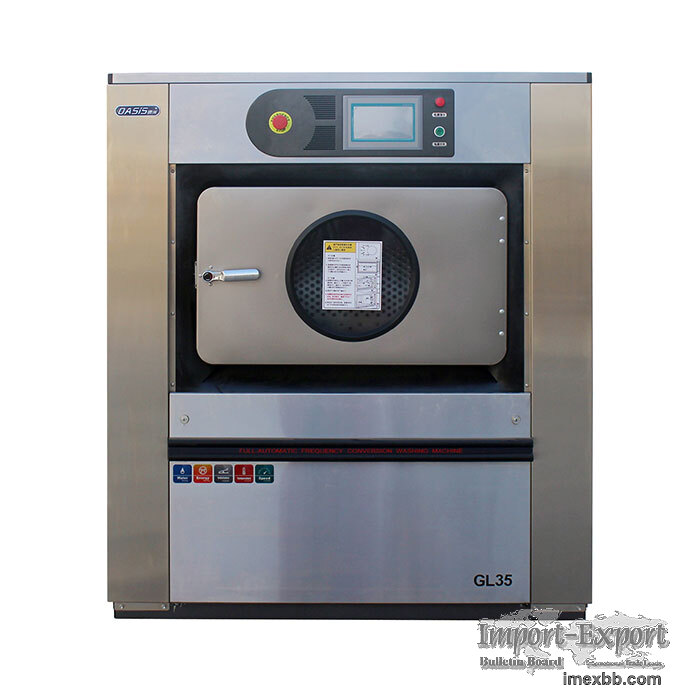

35kg OASIS Barrier Washer

35kg OASIS Barrier Washer
Medical Barrier Washer Extractor

Hospitals; Nursing homes; Cleaning companies; Nuclear Plants; Fire Brigades;
Hotels

High quality and robust construction

Low water, steam and electrical consumption

Higher protection against the spreading of infection
barrier washing machine introduction

Hygienic barrier concept

The linen is loaded into the drum through a large door opening on one side of
the laundry, the soiled side. At the end of washing cycle, the clean linen is
unloaded from the washer-extractor through a second and opposite door in
another room, the clean side of the laundry area. A barrier separates the clean
and dirty side of the laundry. In this case, there is no possibilities that
bacteria, dust or other dirt particles come into contact with the clean linen.

As we mentioned before, the strongest risk is the recontamination of clean
linen by contact of air, surfaces and workers. Using barrier washer-extractor
(positioning through a physical wall) offers the best protection for employees,
patients and the best prevention for the spreading of micro-organisms.

Medical Barrier Washer OASIS Standard Features

Freestanding, high spin

Drum with 1 pocket

Stainless steel (AISI 304) cabinet, drum and tube

Parts in contact with water made of SS304 stainless steel

Large door for easy loading and unloading.

Large sight glass for visible working process.

Oversized frame, bearings and drum

Large air operated drain valve

Auto door positioning system

Easy access to all mechanical parts

Frequency controlled motor

Brake resistor, instance braking

Powerful microprocessor - Freely programmable with up to 50 programs

Standard cold and hot water inlet valves and one drain valve

Direct steam injection heating

Air bags suspension system ensure quiet and smooth extraction (available for
SXTG-600 and SXTG-1100)

Soap Dispenser with 5 compartments

Signal up to 5 dose pumps

Safety devices - emergency stop, overload protector, air lock doors, air
spring door support, safety door interlock system, additional door lock sensor,
unbalance switch, heat resistance door glass, double vibration control, buzzer,
etc.
https://www.oasislaundrygroup.com/barr , ier-washer/

Options

SS316L stainless steel for high specification clean room application

Multi-language

Wash record printer

Built-in weighing system

Electrical heating or indirect steam coil heating

Third water inlet valve and second drain valve for water reuse

Water sampling valve

Liquid soap pump for liquid detergents

Special voltage system
