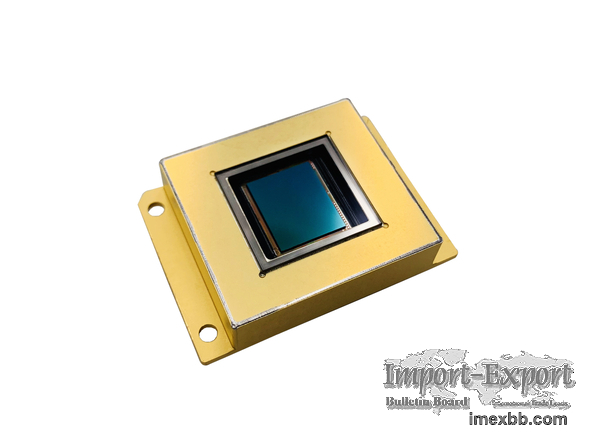

320 InGaAs QVGA Area Sensor

GH-SW320 InGaAs area image sensors are two-dimensional image sensors that have
a hybrid structure consisting of a CMOS readout circuit (ROIC: readout
integrated circuit) and back-illuminated InGaAs photodiode
for short wavelength infrared (SWIR, 900nm-1700nm) and extended wavelength
infrared (Vis-SWIR, 400nm-1700nm) regions.

The detector can be supplied in two types of metallic package:

Nitrogen & Vacuum, which both include a Thermo-Electric Cooler (TEC)

It is well-adapted to a large range of applications, such as surveillance,
hyperspectral imaging, remote sensing, machine vision, industrial sorting,
process inspection, and science.

TECHNICAL INFORMATION OF GH-SW320

Key Features GH-SW320
Sensor Type InGaAs PIN-Photodiode
Format 320 x 256
Pixel Pitch 15 μm
Spectral Response 0.9µm-1.7µm / 0.4um-1.7µm (optional)
Integration Type Snapshot
Readout Modes ITR ,  IWR , CDS
Exposure Time 2μs to full frame
Maximum Full Frame Rate 500 Hz
Maximum Pixel Rate 18MHz
Output Signal Swing ≤2V
Temperature Sensor Output Yes
Quantum Efficiency(QE) >70%  ( 1.0um ~ 1.6um ）
Noise with ROIC 35e- @HG
Dark Current 30fA @ 0.1V&18℃
Array Operability > 99.5% ( Minimum )
Non Uniformity without Correction ＜ 5%
Dimension (W x H x D) 36 mm x 25.4 mm x 7.2 mm
Windows Quartz / Sapphire
Number of Pins 28-pin Metal DIP Package
Packaging Characteristics Hermetically Sealed
Operating Temperature - 40℃ to 70℃
Storage Temperature - 40℃ to 70℃
