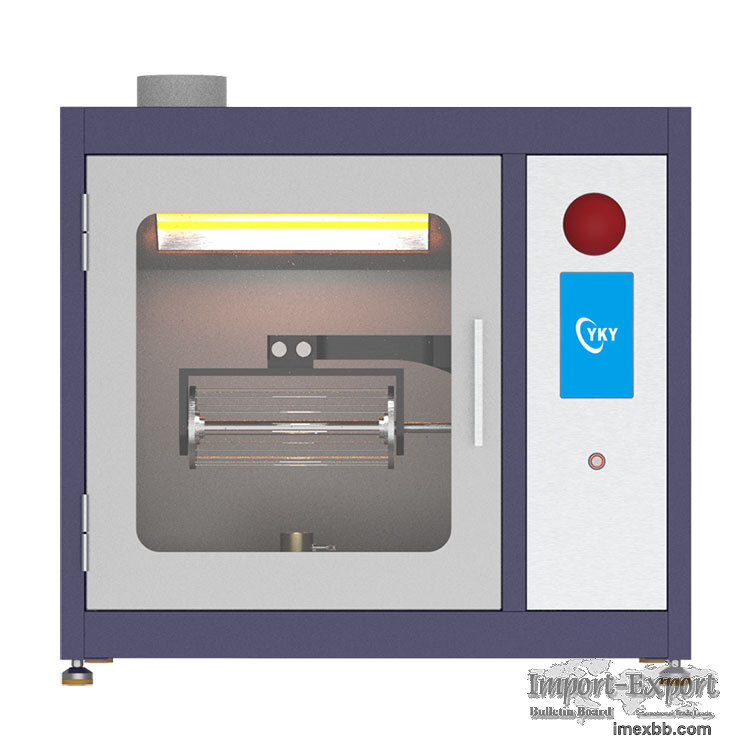

30kv high voltage electrospinning equipment for nanofiber

The high-voltage electrospinning machine produced by our company is a device for
preparing ultra-fine fibers based on electrospinning technology by using polymer
solution or melt to spray in a strong electric field. It is mainly composed of four
parts: liquid supply device, spinning head, high voltage power supply and
collecting device.

Technical parameter
Supply voltage AC220V，50Hz
Total power 2.5KW
Input voltage 0-30kV
Max current 0.5mA
Heating method Infrared heating tube
Max temperature Substrate temperatures up to 60℃
Max heating power 1000W
Syringe capacity 2.5ml~60ml
Flow range 2.779μl/min~72.24ml/min
Mandrel collector:6 sets with various size: 200mm x φ100, 25, 12, 7, 6.0, 2.0mm;
Actuator: brushless motor; mandrel shaft speed: 300-4000 rpm;
Plate collector Dimensions: 320mm x 100mm x 2mm; Material: Stainless steel
Y-axis movable plate collector Dimensions: 300mm x 200mm x 5mm; Material:
Stainless steel; used to prepare film, computer program to control the way of
moving

Minimum Order: 1 sets
