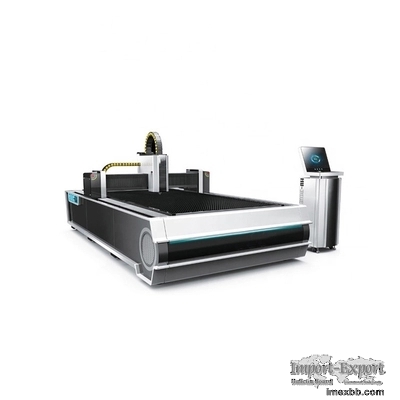

3000mm 1500mm Manufacture products CNC aluminum Fiber Laser Cutting Machine

Product Description
3000mm 1500mm Manufacture products CNC aluminum Fiber Laser Cutting Machine
Sheet Metal Price




The continuous success of laser cutting is beyond the reach of most other
processing. This trend continues today. In the future, the application
prospect of laser cutting will be more and more broad.



Model HN-1530/HN-2040/HN-2060
Working area 1500mm*3000mm
Laser type Fiber laser
Rated laser power (optional) 1000W-12000w
Traditional system Gantry double drive structure
lubrication system Fully automatic
Maximum speed 100m/min
Maximum acceleration 1.0G
positioning accuracy ±0.01mm/1000mm
Repeated positioning accuracy ±0.03mm/1000mm
Support for graphic formats CAD, DXF(etc)
work environment 0-40 ℃, humidity ≤ 80%, no condensation
Total power 20KW
Power demand Three phase 380V / 50Hz / 60Hz
Outline size 4420mm*2320mm*1750mm
Total weight approximately 4000KG


3000mm 1500mm Manufacture products CNC aluminum Fiber Laser Cutting Machine
Sheet Metal Price 0



product details



High-Precision Transmission System
Taiwan T-win double drive rack guide, Japan Panasonic drive motor, Japan
Shimpo reducer
The positioning accuracy of the affordable laser cutter is 0.02mm, and the
repeated positioning accuracy is 0.02mm.



3000mm 1500mm Manufacture products CNC aluminum Fiber Laser Cutting Machine
Sheet Metal Price 1
