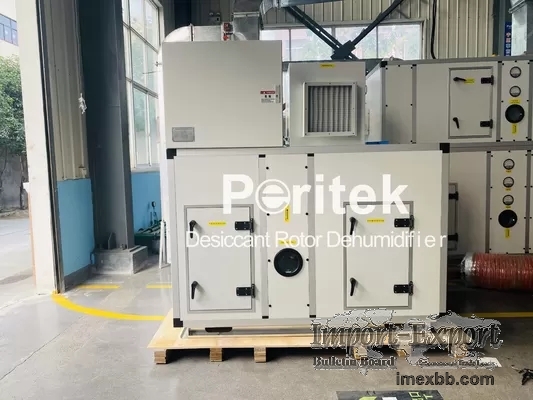

3000CMH Electrical Heating Desiccant Wheel Dehumidifier -20℃-40℃

-20℃-40℃, 3000CMH Electrical Heating Desiccant Wheel Dehumidifier



Quick Detail:



1. Process airflow 3000CMH

2. Humidity removal 21.7kg/h.

3. High moisture removal.

4. Suitable for low temperature and RH process.

5. Could be usded together with air conditioner.

6. Start with domestic first rotor dehumidifier,

7. With 30 years professional theoretical and practical experience in
dehumidifier field

8. Draw up the national military standard and industry standard of
dehumidification equipment

9. Silica gel desiccant wheel from Sweden.



How does a desiccant wheel dehumidifier work?

A desiccant wheel with a grid of small air passages, similar to a large bundle
of coffee straws, is impregnated with silica gel (the same silica that is used
in the packets that keep shoes dry). The desiccant wheel rotates slowly through
the different airflow zones of the desiccant, as it works to remove moisture.



When should you use a desiccant dehumidifier?

When you're faced with drying in cool temperatures or drying dense materials
like hardwoods, brick, or plaster-and-lath construction, nothing beats the
efficiency and power of desiccant dehumidifiers.



Description:



The Dehumidifier is specialized for normal temperature and low humidity process
environment. Its major characteristics are as follow:

1. Main components: pre-filter, desiccant rotor, process fan, electric
controller and cabinet.

2. The cabinet is made of aluminum alloy, and double insulation panel structure
with high density polyurethane insulation material inside, strong, compact,
anti-corrosion, and it is anti-“cold bridge” which can help avoid
condensating.

3. The dehumidifier select PROFLUTE silica gel desiccant wheel from Sweden.

4. Select centrifugal fan, its impeller and vent was plated with anti-corrosion
coating, it’s strong and anti-corrosion.

5. G4 rough effect air filters to assure air purity.

6. Use text display, temperature and humidity probe to control temperature and
humidity. It is convenient to operate.





Main Parameters of ZL Series Dehumidifier



Main Parameters/Model ZLK-2000F ZLK-2500F ZLK-3000F
Process Air Rated Airflow(m3/h) 2000 2500 3000
Process Motor Power (kW) 0.75 1 1.0
Process ESP(Pa) 300 300 300
Reactivation Air Rated Airflow(m3/h) 667 833 1000
React. Motor Power (kW) 0.75 1.5 1.5
Process ESP(Pa) 200 200 200
Drive Motor Motor Power (kW) 0.06 0.06 0.06
Reactivation Mode Electric, Max Power (kW) 22.2 27.9 36
Steam Pressure (Mpa) 0.35~0.45
Steam Consumption(kg/h) 40 48 58
Dehumidifying Capacity (20°C,70%) (kg/h) 14.4 18 21.7
Total Rated Power (kW) Electric Heating Mode 23.74 30.46 38.53
Steam Heating Mode 1.54 2.56 2.53
Size (mm) Length 2084 2084 2143
Width 1000 1300 1262
Height 1700 1885 1924
Approx. Weight (kg) 400 600 650
Supply Power 3ph,380V/50Hz
Latent heat temperature rise (kW/h) 12~15 15~18 18~22

1. Air flow above 4000 without process fan, users can select.Note:

2. If regeneration heating type select steam, P=0.35~0.45MPa.

3. Larger airflow dehumidifiers can be customized.





Competitive Advantage:



1. Peritek dehumidifiers are manufactured based on more than 30 years of
research and development. Have been used in space suit specific cell production
and become the most advanced satellite transmission tower supporting equipment.

2. Peritek dehumidifiers with R-DD optimal design, compared with the general
dehumidifier, can save energy more than 35%, and above 10% with heat exchanger
dehumidifiers.

3. Dehumidification ability of Peritek dehumidifiers is great. Under normal
use, after closing down for 10 hours, system can restart and reach the
technical target in 30 to 60 minutes.

4. We can provide users domestic initiative remote communication interface
according to your requirements, and the remote computer operation and
management system networking, superior to realize remote service.

5. Peritek dehumidifiers adopt steel structure with plastic-sprayed surface
(Peritek self-owned patent, patent number: ZL 2008 0163177.3 2).





Work Principle:



The core component of rotary dehumidifier is the 8-16 hour spin in turn densely
cellular Conde desiccant wheel. The desiccant wheel on both sides by high-
performance silicon fluorine rubber seals along the entire surface of the
radial will be divided into 270 ° of the treatment area and 90 ° of the
regeneration zone, when the moist air comes into the processing area, the air
moisture in the desiccant wheel was adsorbed into dry air, dry air meet the
need of dry place or gas production process.



3000CMH Electrical Heating Desiccant Wheel Dehumidifier -20℃-40℃ 0



Typical Application Fields:



1. Warehouse, Library and Archives:

In low humidity environment, the goods, books and files will not be damaged for
a long time.

2. Pharmaceutical Industry:

Widely used in processes need to control humidity in parametrical industries,
for example, soft gelatin capsule, fluidized bed, tablet press, coating
machine, tumble dryer, tray dryer and so on.

3. Electronics Industry, Lithium Battery

It is widely used for precision instrument manufacture such as electronic
components, astronavigation component, lithium battery etc which needs strict
control of moisture.

4. Chemical Fiber Industry:

Used with chiller, it can make the dew point below -40℃ to meet the drying
environment for PET chip in the chemical fibre factory.

5. Food Processing Industry:

Used in dehydrated vegetables, chocolate, candy, chewing gum manufacturing,
cube

sugar store,flour processing, fermentation, drying and other processes.

6. Space and Aviation:

7. Glass Lamination

8. Ship Coating

9. Bridge Anticorrosion

10. Rubber Tire

11. Nuclear power plants

12. Printing







Packaging & Shipping:
