3000 Times 2560WH Lifepo4 Storage Battery 24V 100Ah IP67 Prismatic Cell

Lifepo4 Solar Battery 24V 100Ah Lifepo4 Battery Solar System Storage Battery



Advantages of Lifepo4 Solar Battery 24V 100Ah Lifepo4 Battery Solar System
1. Safety: LiFePO4 is the safest lithium-ion battery cathode material, not burning
and explosion.Environmental Protection: LiFePO4 does not contain any harmful heavy
metal elements, pollution-free both in production and actual use.

Easy Installation: Our screw in bolt ports allow for easy and secure connectivity.
Plug and Play.



2. Long Cycle Life: Can be charged and discharged more than 2000 times @ 85% DOD,
5000 times @ 60% DODLight Weight: LiFePO4 battery is lighter and smaller than Lead-
acid battery/ Gel battery.



3. Protection: LiFePO4 batteries built in BMS it has over charge, over discharge,
over temp, short circuit protection.



The Parameters of Lifepo4 Solar Battery 24V 100Ah

Item

Specification

Note ,





























Battery Pack

Nominal Voltage:

24V(25.6V)

Support Customized 6.4V-96V

Nominal Capacity:

100AH

Any capacity can be customized

End of Discharge Voltage:

19.2V



End of charge Voltage:

29.2V



Max.Cont. Charge Current:

≤50A

Free Customization Service

End of Charge Current:

100mA

Free Customization Service

Nominal Discharge Current:

50A(Safe)

Free Customization Service

Max. Pulse Discharge Current:

100A(10S)

Free Customization Service

Internal Resistance:

≤50mΩ



Operating Charge Temperature:

0～45℃



Operating Discharge Temperature:

-20～60℃



Storage Temp.(60-80% SOC Storage):

-10～45℃



Charge Method:

CC/CV



BMS:

Built in BMS

Support Customized Extra Function

Dimension:

360*420*180mm(L* , W*H)

Free Customization Service

Weight:

24KG



Cycle Life:

2000+

(Cycle @RT, 1C rate, 85%DOD)

Battery Cell Used

Prismatic LiFePO4 Cell/ Pouch LiFePO4 Cell

3.2V 100AH/ 50AH

8S2P/ 8S4P

BMS

Charge Protection, Over charge Protection, Over Discharge Protection, Short Circuit
Protection

Support Customized Extra Function

LED Indicator

/

/





Battery Case

ABS Plastic Case

/



IP Grade:

IP56

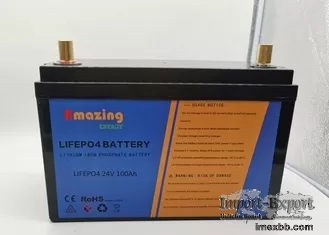

The Images of Lifepo4 Solar Battery 24V 100Ah
