3 Zones 350mm PCB Wave Soldering Machine 400kg Solder Pot

Wave Soldering Machine

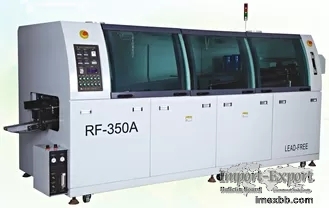

RF-350A Lead Free Wave Solder

Specifications

Model RF-350A
Spraying System
Transmission Method Air cylinder
Spraying Pressure 0.25MPa ~ 0.4MPa
Flux Flow Flux Flow meter
Auto Flux Feeding Optional
Exhaust Method Upper Exhaust
Exhaust Capacity 25M3/min
Preheating System
Preheating Model IR tube Option : Hot Air Convection
No. of Preheating Zones 3
Preheating Length 1800 MM
Preheating Temp. Room Temperature : ~300C
Warm Time Approx. 20/min
Conveyor System
PCB Width ( L x W ) 350 MM
Conveyor Direction Optional
Conveyor Height 750 MM
Componet Clearance (mm ) 130 MM
Conveyor Width Adjustment Manual
Conveyor Angle 4 ~ 6 C

Features
1. Totally design for Lead Free process.
2. Streamline design design with the curve glass windows for easy viewing and
maintenance.
3. PLC control and temperature control meter.
4. Standard adopted high quality cylinder and nozzle to get uniform flux spraying,
adding the curtains to reduce the leakage of flux smog.
5. The preheating zones using the high efficiency IR ceramic heaters (option : Hot
air convection )
to achieve strong and stable heating results.
6. Special alloy transportation chain claws, non-stick tin and ensures the quality
of welding PCB board.
7. Tin stove adopts imported high frequency conversion motor independent control,
stable performance.
8. Tin stove preheating furnace uses high-speed PID and 2 independent infrared
heating (IR heating) control.
9. Time can be controlled, we can preset switch functions, tin stove can heat
within 90 minutes.
10. With black box memory function, the machine can always store the production
management records,
improve work efficiency.
11. Automatic claw cleaning function ensure the cleanliness of claws.
12. Reasonable design and sensitive fault security alarm system ensure the stable
performance and operators' safety.
13. Lead-free solder furnace with independent design, environmental protection and
safety, easy to clean.
