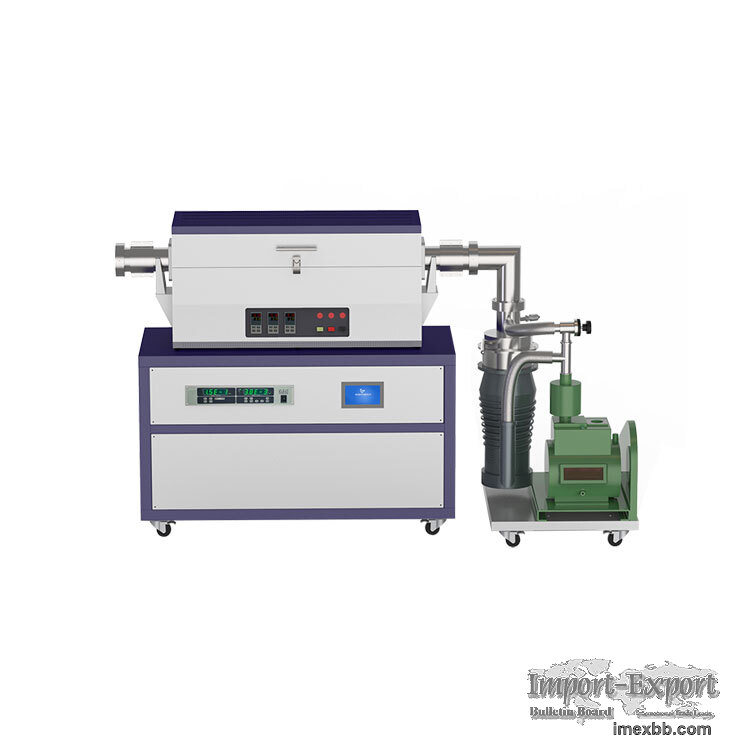

3 zone 1200℃ horizontal split type high vacuum tube furnace

1200C High vacuum nickle base alloy tube furnace

KEY:electrically heated, high vacuum, three (03) zone, horizontal, split type (for
Rapid Cooling), tubular furnace

Technical Specifications
►A.Heating of Furnace
Working Temperature 1150 °C
Heating Zones 3
Length of Each Heating Zone 300-400mm
Length of Uniform Temp Zone 500 mm (Minimum)
Material of Heating Elements Kanthel
Vacuum tight tube material Inconel 600 or equivalent Nickle base alloy
suitable for above mentioned Temperature. Water cooling jackets on both ends of the
working tube to be provided.
Inside dia. of working tube 100 mm (Minimum)
Wall thickness of working tube 5 mm (Minimum)
Temperature uniformity ± 5°C (In Uniform Temperature Zone)
Temperature Control independent Eurotherm Programmable PID controllers (One
for each heating zone),
Note: The temperature controllers must be selectable for all types of thermocouple.
Safety Controller A safety controller must be installed in the furnace to
shut off the furnace in case of temperature shooting due failure of temperature
control,
Thermocouples: K type thermocouples for controlling/ measuring the temperature of
heating zones

►B.Vacuum in Furnace
High vacuum to be generated by rotary vane pump and oil diffusion pump incorporated
in a vacuum station. The valves in the vacuum station are to be operated manually.
Two stage rotary vane pump Suction capacity: 5L/s; Ultimate vacuum:1x 10-3
mbar
Oil Diffusion Pump Suction capacity: 600L/s; Ultimate vacuum: 1x 10-6 mbar
Vacuum Gauge & Controller Vacuum gauge fitted in the working tube should be
able to measure the vacuum during heating operation of the furnace. Measuring
range: 1x 10-9 mbar

►C.Electrical System
Heating 380V, 3 phases, 50Hz, Approx. 45KVA
Vacuum 220V, single phase, 50Hz

Minimum Order: 1 sets
