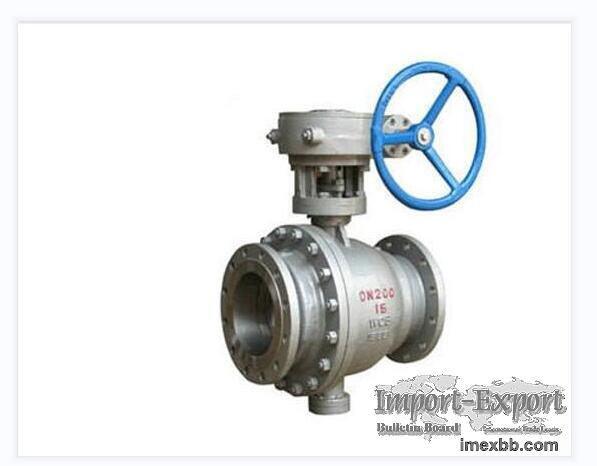

3 Way Ball Valve

A three way ball valve, also known as a triple ball valve, is a type of
valve that uses a ball to control the flow of fluid through a pipe. The ball
has a hole through the center that allows the fluid to flow when it is
aligned with the pipe. When the ball is turned 90 degrees, it blocks the
flow of fluid. Three way ball valves are commonly used in applications where
a high level of precision is required, such as in chemical processing or oil
and gas pipelines. They are also known for their durability and reliability.
Three piece ball valves are designed to be easily disassembled for
maintenance or repair, hence their name ''three-piece''. They can be made
from a variety of materials, including stainless steel, brass, and PVC.

3 Way Ball Valve Specification

ANSI Class 150Lb

ANSI Class 300Lb
ANSI Class 300Lb
NPS 2 21/2 3 4 6 8 10 12 14
16 18 20 24 26 28 30 32
(RF)L 216 241 283 305 403 502 568 648 762
838 914 991 1143 1245 1346 1397 1524
(BW)L1 216 241 283 305 403 521 559 635 762
838 914 991 1143 1245 1346 1397 1524
H 177 190 210 235 530 625 650 780 790
920 970 1100 1150 1290 1400 1630 1800
(d) 49 62 74 100 150 201 252 303 334
385 436 487 589 633 684 735 779
W 350 400 500 500 600 600 600 600 800
800 800 800 800 800 800 800 800

ANSI Class 600Lb
ANSI Class 600Lb
NPS 2 21/2 3 4 6 8 10 12 14
16 18 20 24 26 28
(RF)L 292 330 356 432 559 660 787 838 889
991 1092 1194 1397 1448 1549
(BW)L1 295 333 359 435 562 664 791 841 892
994 1095 1200 1407 1461 1562
H 180 193 215 241 540 635 665 790 810
925 985 1130 1185 1335 1450
(d) 49 62 74 100 150 201 252 303 334
385 436 487 589 633 684
W 350 400 500 500 600 600 600 600 800
800 800 800 800 800 800

ANSI Class 900Lb
ANSI Class 900Lb
NPS 2 21/2 3 4 6 8 10 12 14
16 18 20 24
(RF)L 368 419 381 457 610 737 838 965 1029
1130 1219 1321 1549
(BW)L1 371 422 384 460 613 740 641 968 1038
1140 1232 1334 1568
H 219 235 260 390 655 770 805 965 980
1145 1195 1360 1425
(d) 49 62 74 100 150 201 252 303 322
373 423 471 570
W 500 500 500 600 600 600 600 800 800
800 800 800 800

ANSI Class 1500Lb
ANSI Class 1500Lb
NPS 2 21/2 3 4 6 8 10 12 14
16
(RF/BW)L/L2 368 419 470 546 705 832 991 1130
1257 1384
(RTJ)L2 371 422 473 549 711 841 1000 1046 1276
1407
H 285 306 338 506 852 1000 1045 1255 1270
1485
(d) 49 62 74 100 144 192 239 287 315
360
W 500 500 600 600 600 800 800 800 800
800

ANSI Class 2500Lb
ANSI Class 2500Lb
NPS 2 21/2 3 4 6 8 10 12
(RF/BW)L/L2 451 508 578 673 914 1022 1270 1422
(RTJ)L2 454 540 584 683 927 1038 1292 1445
H 304 327 362 540 811 1070 1120 1345
(d) 42 52 62 87 131 179 223 265
W 500 600 600 600 800 800 800 800

There are many valve companies, but we are one of the best choices for you.

Minimum Order: 1 kilograms
