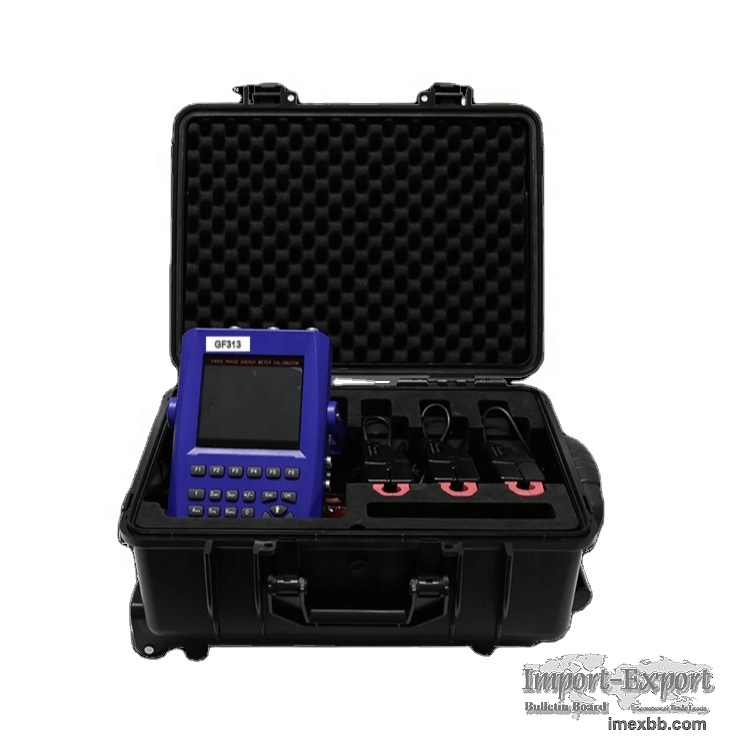

3-phase energy meter calibrator GF313 GFUVE, Handheld AC tester 0.2class

The model GF313 handheld three phase electricity meter field tester is a
economical 0.2% AC energy meter accuracy testing device, mainly used to test three
phase and single phase electricity energy meter error on site, measure all various
of AC electrical parameters - U, I, P, Q, S, PF, F and CT ratio & phase error etc.
And then it can check whether the wiring of the electricity meter is correct.
GF313 electronic meter tester is an ideal electrical test tool for the
metrological service of electricity power utilities. It has been widely used in
more than 80 countries around the world.

Specification
Customized support: OBM
Place of Origin: Beijing, China
Brand Name: GFuve
Model Number: GF313
Accuracy: 0.2%, 0.5%
Power supply: 220V; Li-polymer battery; Power line supply
Voltage range: 0-600V(0-830V)
Voltage error: ±0.05% (30V-600V) ±0.1% (0.01V-30V)
Current Test range: 1mA-120A; 0-200A; 0-500A; 0-1000A; 0-2000A; 0-3000A
Energy constant: 180000imp/kWh, 1800imp/kWh, 180imp/kWh
Pulse ratio: 1:1
Pulse Output level: 5V
Pulse frequency: Standard 400Hz-2.5KHz, customized max 10KHz
Weight: 1.6 kg

Minimum Order: 1 sets
