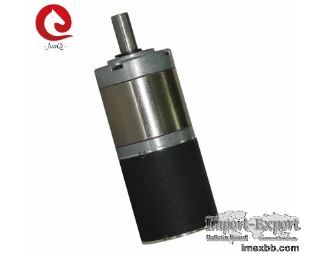

3 Phase 36mm Planetary Gearbox Motor Brushless DC Electric Motor 36JXE30K H

Features:

1. Wide Speed Range, Flat Torque

2. Compact And High Power

3. Excellent Speed Stability

4. High Efficiency And Energy-Saving



Wire Diagram:

Type Color Functions
UL1061

AWG26

Red Vcc
Blue Ha
Green Hb
White Hc
Black GND
UL1061

AWG20/24

Yellow Phase U
Red Phase V
Black Phase W


Driving Motor Specification:

Item Unit JQ36RBL40-24-4818A JQ36BL57-24-4524A
Number of poles 4 4
Number of Phase 3 3
Rated Voltage VDC 24 24
No-Load Speed rpm 7000 5800
Rated Speed rpm 4800 4500
Rated Torque mN.m 36 50
Rated Power W 18 24
Peak Torque mN.m 108 150
Peak Current A 3.7 4.1
Line to Line resistance ohms@20℃ 2.4 2
Line to Line Inductance mH 2.1 2.0
**Notes: Above is standard motor, we can be designed &manufactured with
customized request!!
