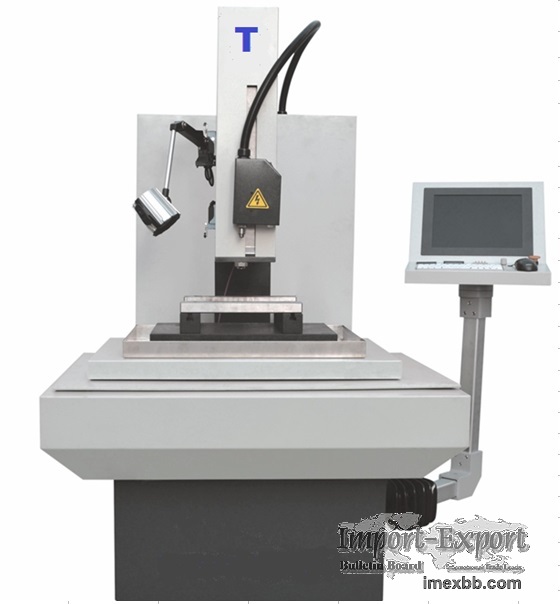

3 Axis CNC Drilling EDM machine

Main Specification


Item No:

TD403CNC

Worktable size(L×W)

550*360 mm

Table travel(X×Y)

400*300mm

Z axis travel

370 mm

W axis travel

300mm

Max distance between work table and guider

400mm

Max. drilling speed

30-120mm/min

Working liquid pressure

0-10Mpa

Max. working current

30 A

Electrode diameter

0.15-3.0 mm

Max workpiece weight

500kg

Max X Y axismoving speed

≥2000mm/min

X Y Z driving

AC motor of FUJI Japan

Move the minimum unit

0.001mm

Axis moving control mode

Electric wheel

Input/output interface

USB LAN RS-232

Working solution

water

Control mode

Moving card

Screen display

15″LCD touch screen

Program

MDI CAD LIST

Screw compensation

Yes

Positioning accuracy

0.012

Repeat positioning accuracy

0.006

Power supply

380V /50 Hz

Max. Power consumption

3.5 kw

Machine dimension

2300*2100*2250mm



& , lt; , br>
I. Features:


1. Support program from CAD
2. Support USB and LAN
3. Save the programs and no holes limit
4. Industrial PC
5. AC servo motors and balls crews for high accuracy
6. Up to 4 axes can be moved together
7. Precision hole drilling
8. AC servo motors for axes moving

II. The machine characteristics :
1.Casting body with good quality
2. All in one design
3. Adjusting control box
4. X Y Z precision Hiwin linear guide from Taiwan
5. All moving by AC motor of Fuji japans
6. Windows friendship interface
7. 3 axis EDM Drilling software
8.Program with AUTO CAD List MDI etc
9.100L stainless water tank with filter and level control system
10. High pressure pump made in Taiwan
11. LCD tough screen
12. Electronic wheel for axis moving
13. Carbide sealing made in Taiwan
14.Guider holder made in Taiwan
15. Guider from Taiwan
16. Marble table
17. Stainless level block
