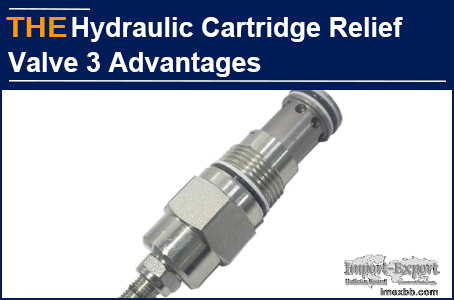

3 Advantages of AAK hydraulic cartridge relief valve, Richard admired

Richard, a hydraulic customer from Bolivia, failed to purchase hydraulic
cartridge relief valves from China for the first time. Richard has purchased
hydraulic components from local hydraulic cartridge valve manufacturers in
Bolivia for 3 years. He heard from his peers that the cost performance of
purchasing from China is better than that of Bolivian hydraulic valve
manufacturers, so he began his overseas procurement trip. A hydraulic cartridge
relief valve with rated pressure exceeding 30MPa, and the fit clearance between
valve body and valve spool is required to be 0.006~0.01mm. Richard successively
tried samples with 3 hydraulic cartridge relief valve manufacturers in 70 days.
The hydraulic cartridge relief valve samples had either internal and external
leakage, blocked oil circuit, or even stuck. 3 times of proofing failed, which
made Richard helpless and even suspected that he was misled by his domestic
peers.

Richard noticed AAK on the B2B website and saw some tweets and customer cases
to solve the problems of hydraulic cartridge valves, especially some big brands
such as HydraForce and SUN Hydraulics, are also loyal customers of AAK for many
years. He seemed to see hope and left a message to us: How much MPa can the
rated pressure of the hydraulic cartridge relief valve with a clearance of
0.006~0.01mm between the valve body and the valve spool be? When I saw this
message, I subconsciously felt that he had stumbled in the accuracy when
purchasing this hydraulic cartridge relief valve, and he was inexperienced in
choosing the hydraulic cartridge valve manufacturer.

According to the problems of his hydraulic cartridge relief valve samples, AAK
technical team determined that the problem was caused by burrs inside the
hydraulic cartridge relief valve. However, the specific problem still depends
on the sample analysis. I suggested Richard making samples directly to see the
manufacturing quality of AAK hydraulic relief valves. Maybe that will change
his view on China hydraulic cartridge valve manufacturers. After 30 days, AAK
sent 10 samples of hydraulic cartridge relief valve. 6 months later, Richard
emailed us that AAK hydraulic cartridge relief valves did not have the problems
of "internal and external leakage, or blockage of the oil path or stagnation"
that occurred in other hydraulic cartridge valve manufacturers, which also
strengthened his confidence in purchasing from China hydraulic cartridge valve
manufacturers.

How to effectively avoid burrs of hydraulic cartridge relief valves? It is also
a "thorn" that AAK has to remove since it was engaged in the R&D and
manufacturing of hydraulic components. With 13 years of manufacturing
experience, AAK can be sensitive to find problems and solve them. In the
processing of hydraulic cartridge relief valves, the undercut of the main valve
hole is the place where the most burrs are generated. The traditional
processing technology is: first rough boring, then semi fine boring, then
milling the undercut, and finally reaming. The burr generated after reaming is
in the same direction as the axis line of the hole, and is sunk in the
undercut, which is difficult to remove completely. AAK has already optimized
the process route: first rough boring, then semi fine boring, then reaming, and
finally milling and sinking the groove. The burr generated is perpendicular to
the axis line, and there is no dead angle, which is easy to observe and remove.

AAK hydraulic cartridge relief valve, no burr, no leakage, no clamping
stagnation, welcome to try the order!
