3/4 inch x 1/8 inch N52 Strong Round Magnets Cylinder Magent Small Circle M

3/4 inch x 1/8 inch N52 Strong Round Magnets Cylinder Magent Small Circle
Magnet

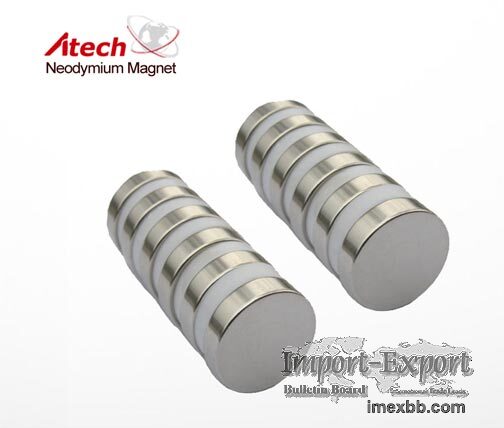

This powerful neodymium disc magnet measures 3/4" in diameter, 1/8" in
thickness, with the pull force of 11.7 lb vertically. It is made from an alloy
of neodymium, iron and boron, plated with triple layers of nickel-copper-nickel
for effective corrosion protection.

The applications of this neodymium disc magnet include consumer electronics,
home appliances, industrial equipment & automation, information technology
products, medical devices and so on.

Why Choose Us

1. ISO9001: 2015 Quality Management System certified by TUV with continuous
improvements.
2. 25 years experience in neodymium magnet R&D and Manufacturing with over 1000
customized designs.
3. R & D team with multiple patents led by national "scientific and
technological progress" award winner.
4. Ultimate magnetic solution provided with easy communication and fast
response.

Please Note:

1. All neodymium magnets are very strong and brittle.
2. Must be handled with extreme care to avoid personal injury.
3. Eye protection should be worn when handling magnets.
4. Keep the magnets away from pacemakers.
5. The neodymium magnet should NOT be for children.

SKU Code: ATECHDI018
Dimensions: D3/4" x 1/8" Thick
Tolerances: ±0.05mm
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni
Magnetization Direction: Axial
Weight: 25 g
Br Max/Gauss rating: 14800 GS
Max Operating Temp: 80ºC (176ºF )

Located in Beijing, China, Atech (HTXD) is a professional magnetic material
manufacturer, dedicated to serving the magnetic needs of global customers. We
provide small flat magnets, small circle magnets and etc. Want to know more?
Please contact us.

Minimum Order: 1 pieces
