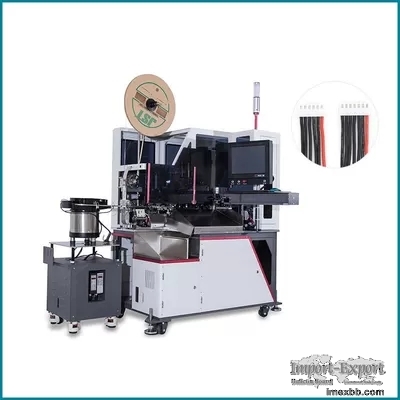

2T Automatic Terminal Crimping Machine

Product Description
CX-1801 Automatic One End Tinning Terminal Connector Crimping Inserting
Machine

2T Automatic Terminal Crimping Machine 0



Equipment Function:



Name of the machine CX-1801auto terminal crimping and housing assembly
Function A side cutting, stripping, tinning; B side Cutting, full
stripping, partial stripping, crimping, housing assembly.
Control Method computer, windows7, touch screen, mouse, keyboard dural
input
Take up system Computer automatic pre-feeding device, suitable for no-shaft
coiling wire + with-shaft coiling wire
Detection Device CCD visual inspection, With terminal or not, No
wires alarm, air pressure detection, housing plug and unplug force detection
Terminal pressure detection system Optional installation (applicable
for domestic and imported systems)
Defective product handling Sorting (cutting device can be installed)
Adaptable mold OTP standard horizontal mold, straight mold, flag figure
mold
Applicable housing suitable for multiple pins and different distances
of the pin
Crimping force 2T Super Mute terminal crimping machine


Technical Parameter



Voltage 50/60Hz 220V single phase
Cutting Length 25-600mm(＞600mm can be customized)
Applicable cable AWG#30-AWG#18(Suitable for wires of different
specifications and colors )
adaptable terminal The pitch is 1.25-3.96mm
Capacity 1,100-1,500pcs/hr (subject to actual conditions)
Stripping Length A side 1-12.5mm; B side 1-7mm
Cutting accuracy ±(0.2%*L+1)mm
Air Pressure 0.5-0.7Mpa(5-7kg/m³)
Dimension 2,300*1,200*1,370mm take-up 1400*800*1300mm
Weight about 750kg±15 take-up 150kg


Device Configuration

Motor 15 sets of Mitsubishi motor
Pneumatic Components 34 sets of SMC Cylinder(Air source treatment, flow
control, actuator, control valve body all adopt SMC )
Module 4 sets of THK / Hwin linear module
Screw 2 sets TBI
Guide rail 14 sets of THK / Hiwin linear guide
Sensor Japanese Panasonic
Belt American Gates Brand
Bearing Japnese NSK
Blades t is made of imported alloy steel, processed by slow-moving wire,
precision ground, and durable
