2L Rotary Evaporator With Motor Lift

Model: WKR-2
Condition: In Stock
Brand: labsnova
Power Supply: 110V or 220V
Warranty: 1 Year

Product Description
I. Brief introduction:
The LABSNOVA Rotary Evaporator is a common laboratory equipment, which is
composed of motor, distillation bottle, heating pot, condensing tube, etc. We
manufacture rotary evaporator with capacity 1-2L, 3L, 5L, 10L, 20L, 30L, 50L,
100L. Support customization, provide one-stop solution.

LABSNOVA® Rotavapor WKR-2 used for purification distillation test rotates and
shapes a thin film in negative pressure condition by heating, evaporates
efficiently, and then condenses and recollects solvent to purify and separate.
It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology
industries, in research and development, in manufacturing and quality
assurance, in laboratories, and in plant construction.

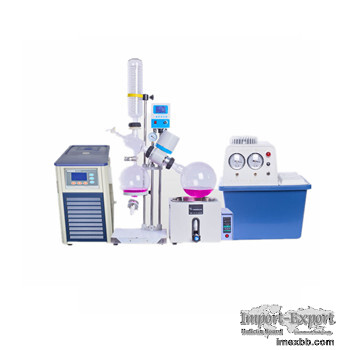

Rotavapor WKR-2 can be made into system devices with Circulating Water Vacuum
Pump, Diaphragm Vacuum Pump, Circulating Chiller.

II. 10 Good reasons to choose LABSNOVA Rotary Evaporators
1. Integrated vacuum control with double sealing with Teflon (PTFE) and
fluorous rubber to ensure high vacuum degree. Optimization of the evaporation
process, precious lab space saved
2. With GG-17 High Borosilicate Glass, all pieces have been designed for
efficient use of surface area.
3. High-efficiency condenser with 1700 cm² cooling surface, can recover
solvents efficiently and fast.
4. All valves and ports are high efficiency allowing a continuous feed of
material.
5. Electric lift for precise positioning of the glassware
6. Stepless speed setting with with speed display, digital temperature display,
operate visually and easily.
7. Quite operation, safety features such as over-temperature shut off and dry-
run protection.
8. Flask clamping mechanism with integrated push-off function for easy exchange
of evaporation flasks.
9. Excellent price, A solution for any budget.
10. Best value on the market and each one comes with fantastic customer
service, and a 1 year warranty.

III. Technical Data

Model WKR-2 WKR-3 WKR-5 WKR-10 WKR-20 WKR-30 WKR-50
Rotation flask 0.5-2L 3L 5L 10L 20L 30L 50L
Receiving flask 1L 2L 3L 5L 10L 20L 20L
Bath lift Electric lift / Hand lift
Condenser Vertical with dual-spiral glass tubing
Flask rotation speed 0~120rpm 0~110rpm
Motor power 40w 40w 60w 180w 180W 250W 250W
Vacuum degree <399.9pa 20mbar
Rpm indicator LCD display
Heating power 1.5kw 1.5kw 1.5kw 3kw 5kw 8kw 8kw
Power source 220v/110v,50-60Hz
Product size(mm) 460x600x
460 780x450x
500 600x460x
990 1310x760x
750 1620x665x
700 1620x665x
700 1620X820X
695
Weight(kg) 21 38 38.5 104 133 133 177
