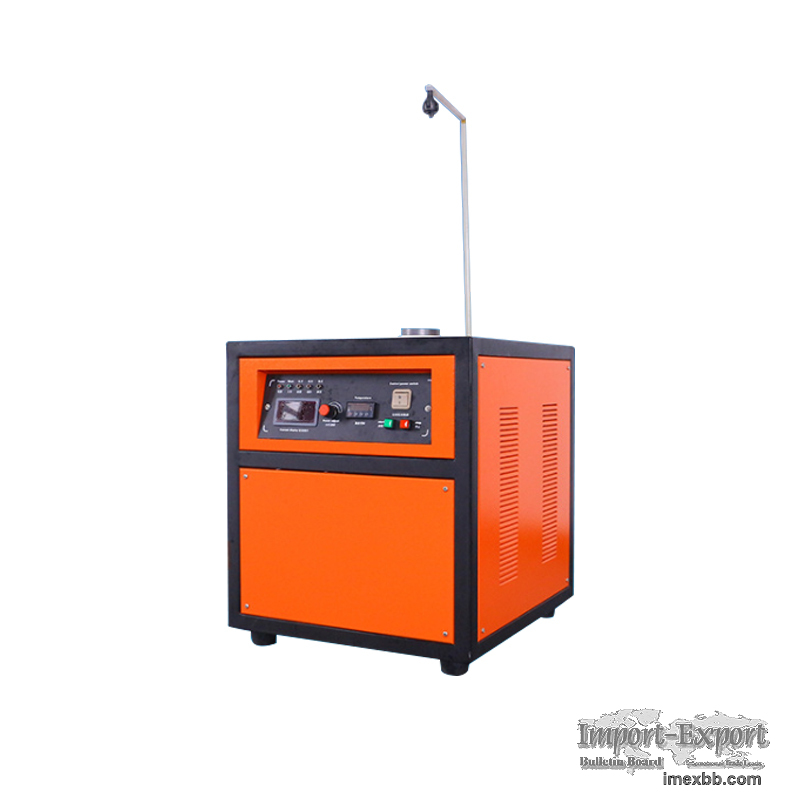

2kg 30KHZ-100KHZ high frequency induction gold melting machine

key word:Gold melting machine /High Frequency gold melting machine/Small gold
melting machine/2 KG Gold melting machine

It is mainly through the crucible container to instantaneously induct and heat the
precious metal, and then perform smelting, purification, casting and other
processes.
1. For precious metals: platinum, palladium, gold, silver, copper, steel, gold
powder, sand, and other high melting point metals.
2. The amount of single melting metal is 1-2KG, and the single melting time is 3-5
minutes.
3. The highest furnace temperature can reach 1200-1500℃.
4: Widely used in homes, exhibition halls and laboratories.

Technical parameters:
Model: DD-15
Maximum oscillation power: 15KVA
Input voltage range: Single phase 220V
Input voltage frequency: 50HZ-60HZ
Output oscillation frequency: 30KHZ-100KHZ
Maximum input current: 32A
Heating, heat preservation\cooling time: 1S-99S
Temporary load rate: 90%
Cooling water flow: Greater than 6L/MIN
Cooling water temperature: Less than 45℃

Minimum Order: 1 sets
