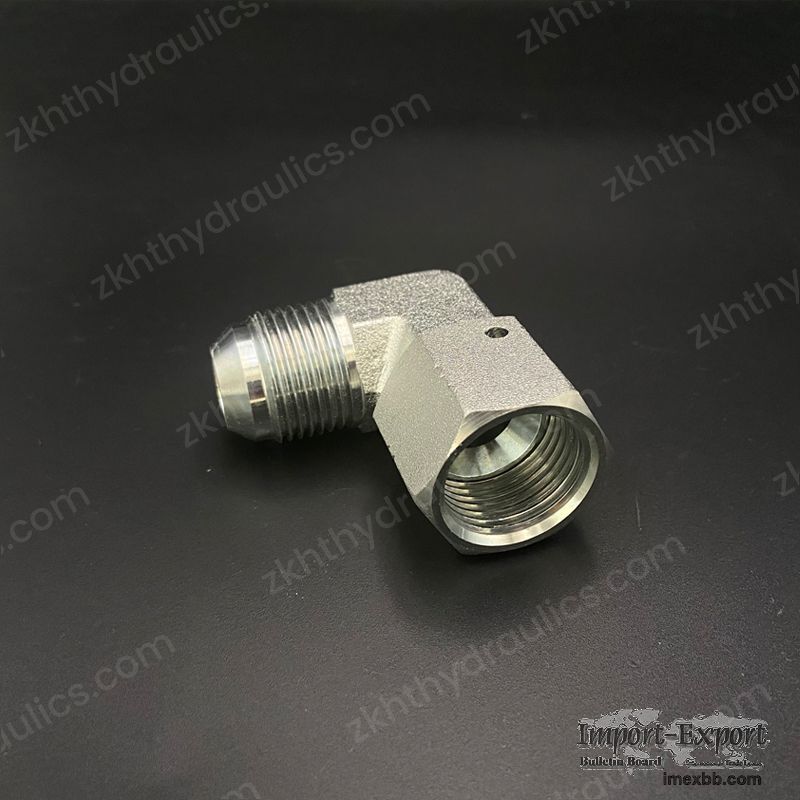

2J9 Hydraulic Adapters

2J9 HT Hydraulics Since 1987 Hydraulic Adapters
90° JIC Male 74° Cone / JIC Female 74° Seat
Part No. Thread DIMENSIONS
E F A C S1 S2
2J9-04 U7/16"X20 U7/16"X20 22 8.5 11 17
2J9-05 U1/2"X20 U1/2"X20 29 9.5 14 19
2J9-06 U9/16"X18 U9/16"X18 29 10 14 19
2J9-06-08 U9/16"X18 U3/4"X16 33 11 19 24
2J9-08-06 U3/4"X16 U9/16"X18 33 10 19 19
2J9-08 U3/4"X16 U3/4"X16 33 11 19 24
2J9-08-10 U3/4"X16 U7/8"X14 37 11 22 27
2J9-10 U7/8"X14 U7/8"X14 37 11 22 27
2J9-10-08 U7/8"X14 U3/4"X16 37 11 22 24
2J9-10-12 U7/8"X14 U1.1/16"X12 40 13.5 27 32
2J4-12 U1.1/16"X12 U1.1/16"X12 40 13.5 27 32
2J4-12-10 U1.1/16"X12 U7/8"X14 40 11 27 27
2J4-12-16 U1.1/16"X12 U1.5/16"X12 49 14.5 33 41
2J9-16 U1.5/16"X12 U1.5/16"X12 49 14.5 33 41
2J9-16-20 U1.5/16"X12 U1.5/8"X12 57 15.5 44 50
2J9-20-16 U1.5/8"X12 U1.5/16"X12 57 14.5 44 41
2J9-20 U1.5/8"X12 U1.5/8"X12 57 15.5 44 50
2J9-20-24 U1.5/8"X12 U1.7/8"X12 57 18.5 48 55
2J9 Hydraulic Adapters
Enlarge Click to Enlarge
