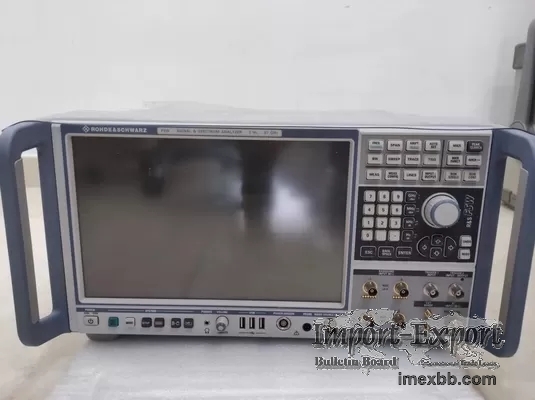

2Hz-67GHz Signal RF Spectrum Analyzer Rohde And Schwarz FSW67

Rohde and Schwarz FSW67 RF Spectrum Analyzer 2 Hz to 67 GHz


Description of FSW67 Spectrum Analyzer



The high-performance R&S®FSW signal and spectrum analyzer was developed to meet
demanding customer requirements. Offering low phase noise, wide analysis bandwidth
and straightforward and intuitive operation, the analyzer makes measurements fast
and easy.

Features:

Frequency range from 2 Hz to 8/13.6/26.5/43.5/50/67 GHz (with external harmonic
mixers from Rohde & Schwarz up to 110 GHz)
Low phase noise of –137 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
WCDMA/HSPA/HSPA+
3GPP LTE
GSM/EGPRS/EDGE Evolution/VAMOS
CDMA2000® 1xEV-DO
List of Options
B4 Precision frequency refer
B500 500MHz Signal analysis BW
B8 Resolution bandwidth 10MH
FS-K100PC EUTRA/LTE FDD Downlink PC Software
FS-K101PC EUTRA/LTE Uplink FDD PC Software
FS-K102PC EUTRA/LTE Downlink MIMO PC Software (incl. LTE-Advanced)
FS-K103PC EUTRA/LTE Uplink MIMO PC Software (incl. LTE-Advanced)
FS-K104PC EUTRA/LTE TDD Downlink PC Software
FS-K105PC EUTRA/LTE TDD Uplink PC Software
FS-K130PC Distortion Analysis Software
FS-K96 OFDM Vector Signal Analysis
FS-K96PC OFDM Vector Signal Analysis
FSW-B10 External Generator Control
FSW-B13 Highpass Filters for Harmonic Measurements
FSW-B160 160 MHz Analysis Bandwidth
FSW-B17 Digital Baseband Interface
FSW-B18 Spare Solid State Disk (removable hard drive)
FSW-B21 LO/IF Ports for External Mixers
FSW-B24 Preamplifier, 100 kHz to 67 GHz
FSW-B25 Electronic Attenuator, 1 dB steps
FSW-B28 28 MHz Analysis Bandwidth
FSW-B320 320 MHz Analysis Bandwidth
FSW-B33 USB Mass Memory Write Protection
FSW-B4 OCXO Precision Reference Frequency
FSW-B40 40 MHz Analysis Bandwidth
FSW-B71 Analog Baseband Inputs
FSW-B71E 80 MHz Bandwidth for Analog Baseband Inputs
FSW-B80 80 MHz Analysis Bandwidth
FSW-K10 GSM, EDGE, EDGE Evolution and VAMOS measurements
FSW-K100 EUTRA/LTE FDD Downlink measurements
FSW-K101 EUTRA/LTE FDD UL MEASUREMENTS
FSW-K102 EUTRA/LTE DL/MIMO MEASUREMENTS
FSW-K104 EUTRA/LTE TDD Downlink measurements
FSW-K105 EUTRA/LTE TDD UL MEASUREMENTS
FSW-K160R Real-Time spectrum analyzer
FSW-K17 Multicarrier Group Delay Measurements
FSW-K30 Noise Figure Measurements
FSW-K40 Phase Noise Measurements
FSW-K54 EMI Measurement Application
FSW-K6 Pulse Measurements
FSW-K7 Analog Modulation Analysis AM/FM/
M
FSW-K70 Vector Signal Analysis
FSW-K72 3GPP FDD (WCDMA) BS Measurements (incl. HSDPA and HSDPA+)
FSW-K73 3GPP FDD (WCDMA) MS Measurements (incl. HSUPA and HSUPA+)
FSW-K76 TD-SCDMA BS MEASUREMENTS
FSW-K77 TD-SCDMA UE MEASUREMENTS
FSW-K82 CDMA2000® BS Measurements
FSW-K83 CDMA2000® MS Measurements
FSW-K84 1xEV-DO BS BS Measurements
FSW-K85 CDMA2000®/1xEV-DO MS Application Firmware
FSW-K91 802.11a/b/g Measurements
FSW-K91AC 802.11ac Measurements
FSW-K91N 802.11n Measurements
FSW-K91P 802.11p Measurements
FSW-U160 Analysis Bandwidth Upgrade from 80 MHz to160 MHz
FSW-U320 Analysis Bandwidth Upgrade from 160 MHz to 320 MHz
FSW-U40 Analysis Bandwidth Upgrade from 28 MHz to 40 MHz
FSW-U80 Analysis Bandwidth Upgrade from 40 MHz to 80 MHz
