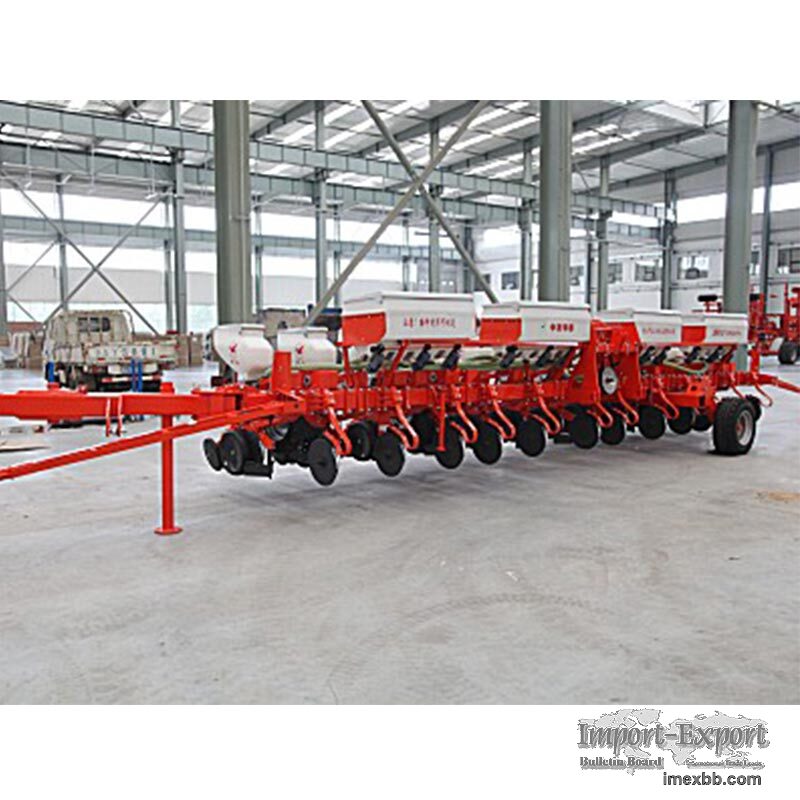

2BFQ-12 Pneumatic Air-Suction Precision Seeder

2BFQ-12 Pneumatic Air-Suction Precision Seeder seeding machine corn planter
soybean planter Agricultural Seeder supplier

Pneumatic Air-Suction Precision Seeder Description:
2BFQ-6 \ 2BFQ-8 \ 2BFQ-12 Pneumatic Air-Suction Precision Seeder is a seeder
specially developed by our company for large farms. This pneumatic air-suction
precision seeder can precisely seed corn, beans, rape and other crops. The
precision seeder adopts the design of enlarged seed fertilizer box, which can
reduce the number of times of adding seed fertilizer and improve work
efficiency. The seeder uses a high-tech electronic monitoring system to prevent
the lack of seedlings and improve the quality of seeding. The machine is
equipped with a longitudinal traction device, which can easily transfer plots.
The longitudinal transport wheel adopts spring to assist the lifting and
landing, and the operation is flexible. The device's seed opener is equipped
with a depth-limiting device, which greatly improves the consistency and
stability of the broadcast depth. The single unit of this machine adopts a
four-link structure, which reduces the requirements for leveling and leveling.
The machine adopts screw adjustment for depth limitation and cracking, which is
convenient and flexible. The machine is equipped with 14 kinds of speed ratio
gearbox, which can adjust the plant spacing conveniently. The track marker
adopts automatic reversing hydraulic valve type hydraulic structure, which is
easy to operate. The precision seeder can be completed at one time, and
multiple operations such as trenching, fertilization, seeding, soil covering,
and cracking have been improved to improve work efficiency.

Zhongyou Fortune-Seeder Technical parameters
1 Spacing (cm) 50-60
2 Planting rows 12
3 Seed box volume (L) 38×12
4 Fertilizer tank volume (L) 170×4
5 Fan input speed (r/min) 540
6 Weight (kG) 2300
7 Dimensions (cm) 800×300×253(470)
10 Speed of work (km/h) 2.16-3.84
12 Seeding device form Vertical disc suction
13 Fan impeller diameter (cm) 400
14 Pure work hour productivity (hm2/h) 2.16-3.84
15 Plant distance range (cm) 3-44
16 Ditch opener form Double garden disc
18 Matched power (kW/hp) 95.5-161.8 /130-180

Agricultural Seeder is one of our main product. This pneumatic air-suction
precision seeder can precisely seed corn, beans, rape and other crops, which is
also easy to operate.

If you want to visit more agricultural machinery, please click here.

https://www.zyagricultural.com/produc , t-2bfq-12-pneumatic-air-suction-precision-
seed , er.html

Minimum Order: 50 sets
