250HP One Input Two Output Pump Drive DPD-220

PRODUCT DESCRIPTION
250HP One Input Two Output Pump Drive DPD-220



Maximum Input Power 190 kW (250 hp)


1:1 ratio @ 2800 rpm



Pump Drive is a transfer gearbox used for the connection of Diesel Engine
and Hydraulic Pumps. We are making a wide variety of gear ratios, including
speed-increasing and speed-reducing options. Modular design options include
a flexible coupling, rubber block drive, or clutch to match your SAE engine
flywheel dimensions. Independent mounting is an option, direct or with a
clutch. We are also making standard and specialized SAE and DIN adaptor kits
for special needs.



Features:

High Strength Aluminum Aloy housing.

Light weight and High strength.
Hardened Shaved gears.
Ball bearings.
Viton seals on input shaft.
Output rotation opposite the direction of input rotation.
Gear ratios identical on all outputs.



Specifications:

Ratio Max. input torque (N.m) Max. output torque for single pump (N.m)
Max. input speed (r/min) Max. output speed
(r/min)
0.68 1120 390 2500 3676
0.83 1056 450 2650 3193
1 1000 500 2800 2800


Connection options:

Flywheel housing:

SAE #3



Flywheel:

SAE # 10 inch

SAE # 11.5 inch



Hydraulic flange:

SAE A

SAE B

SAE C



Spline sleeve:

ANSI B92.1 30° 9T-16/32DP 32mm

ANSI B92.1 30° 13T-16/32DP 41mm

ANSI B92.1 30° 15T-16/32DP 46mm

ANSI B92.1 30° 14T-12/24DP 56mm



250HP One Input Two Output Pump Drive DPD-220 0



Deren Transmission is a professional manufacturer of various power drive
components. Our experienced technical team will bring you strong support in
finding ideal parts for your machines and projects.

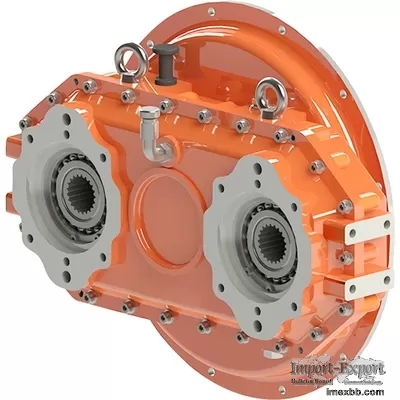

250HP One Input Two Output Pump Drive DPD-220
