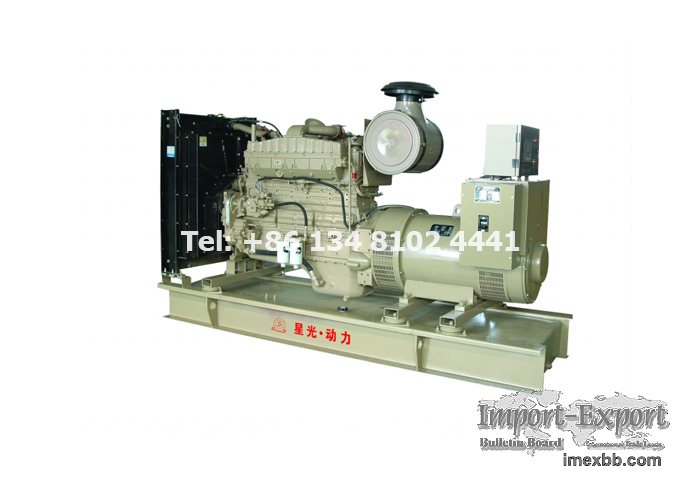

24KW 30KVA CUMMINS DIESEL GENERATOR SET

Diesel Generator Set Data
Set Type: XG-24GF
Output Power: 24KW/30KVA
Rated Current: 43.2(A)
Rated Frequency: 50(Hz)
Start-up time: 5～6(s)
Power Factor: 0.8(Lag)
Rated Voltage: 400/230(V)
Starlight Electricity Equipments Standard Features
1. Engine: DCEC Cummins 4B3.9-G2
2. Radiator 50℃ max
3. Fans are driven by belt, with safety guard
4. 24V charge alternator
5. Dry type air filter, fuel filter, oil filter
6. Alternator: single bearing alternator
7. IP23, insulation class H/H
8. Main line circuit breaker
9. Standard control panel
10. Absorber
11. Muffler
12. User manual
Starlight Standard Control Panel uses micro processing technique integrating
digital, intelligent and network techniques which can carry out functions
including auto start/stop, data measure, alarming. The controller uses LCD
display, optional Chinese and English display interface with operation easy
and reliable. It can be widely used in all types of generator automatic
control system for compact structure, advanced circuits, simple connections
and high reliability
Auto Module Control Panel is the configuration for nobody on duty
controlling generators. This kind of panel adopts auto module control
system, with large LCD display to show the menu. Features: 6110 can receive
remote output signal from ATS and realize auto start and stop of China
Diesel Generating Set. 6310 can realize all functions of 6110, add RS232
interface which can communicate with PC to realize remote operation. 6410
Auto Mains Failure controller, can realize all functions of 6310,
furthermore can detect ATS and control directly.
This new automatic parallel system adopts intelligent modules, inserted and
folded installed, no need the peripheral relay and logic circuit. The main
switch adopts electronic breaker or frame breaker, combined together with
the Cummins Generator, which is very reliable. One generator, one panel. The
panel can be used both for singly and parallel. It is only need to parallel
generator with such panel when the capability needs to be enlarged in the
future.
