24*18mm Waterproof BLDC Motor , 7000RPM 12V 24V 6V Brushless DC Motor

Product Description

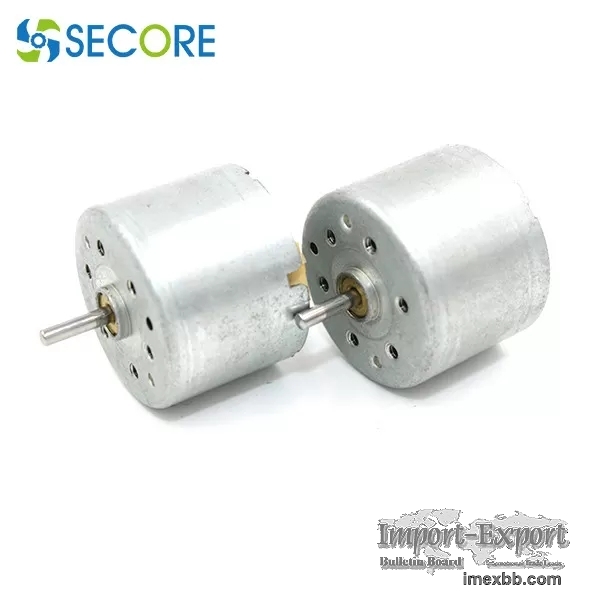

6V 12V 24V 24*18mm Waterproof BLDC Brushless Electric Motor 7000RPM For Water Pump



Product Information:



Size: φ24.0* 18.0mm

Built-in driver

PWM pulse wide speed range

Clockwise/counter-clockwise rotation

FG speed feedback signal

Low EMC

Low noise

Long life: 20000hrs Min.

Over-current protection

Over-voltage protection

Under-voltage protection

OEM and ODM orders are welcome

The design can be customized



MODEL
VOLTAGE
NO LOAD
AT MAXIMUM EFFICIENCY
STALL
OPERATING
RANGE
RATED ,
SPEED
CURRENT
SPEED
CURRENT
TORQUE ,
OUTPUT
TORQUE
CURRENT
r/min
A
r , /min
A
g.cm
W
g.cm
A
BLS2418I-V1 ,
5V~9V
6V
7230
0.14
5784
0.543
29.5
1.751
147.6
2.157
BLS2418I-V2
8V~16V
12V
6430
0.05
5080
0.194
22.8
1.188
108.6
0.738
BLS2418I-V3
8V~26V
24V
8900
0.045
6942
0.164< , br>28.7
2.04
130.2
0.588




Generally select the appropriate power, voltage, speed, torque and body size
according to the actual situation (load, structure size, etc.), and then match the
brushless drive according to the specific parameters of the selected DC brushless
motor.



The parameters are: DC power supply voltage, rated output power, rated load torque,
rated operating speed and the direction of rotation of the brushless DC motor:
clockwise, counterclockwise or both are required, and the continuous duty cycle of
the motor can be in accordance with a certain time operation, the environment that
the DC brushless motor is adapted to: indoor, outdoor, ocean, high pressure, high
temperature, high humidity, corrosive gas, the structure of the flange has two
types of structure, square and round, and the length of the body

24*18mm Waterproof BLDC Motor , 7000RPM 12V 24V 6V Brushless DC Motor 0

1.When selecting the motor model, you should first select the correct voltage, and
select the rated voltage according to the customer's needs to select the brushless
drive voltage parameters. Note that the voltage used should not exceed the range
specified by the brushless drive during no-load and full-load processes.



2. Select the peak current of the brushless drive. The method of selecting the peak
current is to know the rated input current of the DC brushless motor, and the peak
current is greater than or equal to 2 times the rated current.



3. Choose according to the working environment (such as temperature, high humidity,
etc.). The low temperature of the brushless DC motor cannot be lower than -20℃,
and the high temperature can reach 60℃. Waterproof treatment can also be achieved.



4, another important point is the requirement of power supply insulation. In order
to ensure the normal operation of the brushless drive, between the Hall ground wire
of the DC brushless motor and the DC brushless motor winding wire, Insulation
resistance between Hall ground winding wire and chassis is greater than 100 megohms
500VDC, and it can withstand 600VAC/50Hz/1mA/1 second without breakdown.



5. The outer diameter and height of the motor, the diameter of the output shaft,
whether it needs to be equipped with a reducer and other related parts.



If there is no suitable specifications, it can be customized according to actual
needs.





24*18mm Waterproof BLDC Motor , 7000RPM 12V 24V 6V Brushless DC Motor 1

Motor Terminations
Terminations I/O Conditions Remark
GND IN Ground (black wire ) Ground
Vcc IN DC12V±10% (red wire ) power supply
FG VOH OUT Min4V at 5V 10KΩ pull up (yellow wire) this is the
open collector output which can detect the rotation speed using the FG output
according to the phase shift
VOL Min0V Max0.6V
FG current Max 5mA
FG pulse quantity 12 pulse/round
PWM Input voltage IN 0~5V blue wire
VIH Min 2.0V Motor running
VIL Max 0.6V Motor stop
PWM frequency Max50KHz Advise 15~25KHz
CW/CCW Input voltage IN 0~5V white wire
VIH Min 2.0V CCW
VIL Max 0.6V CW


Typical Application:



-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder
• Sphygmomanometer
- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors,
• Fascia gun, massage chair, treadmill
- Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler
• Blender, sweeper, window cleaner, small household appliances
