24 Inch DN600 Ductile iron BS DIN F4 Soft Seal Gate Valve

24 Inch DN600 Ductile iron BS DIN F4 Soft Seal Gate Valve
Gate Valve Description
Size: 1½" - 48" (DN40 - DN1200)
Standard: DIN / BS / ANSI / Korean
Structure: Gate
Pressure: PN10, PN16, PN25
Coating: WRAS approved epoxy powder at 300 micron thick
Media: Water
Certificate: ISO, SGS, CE
Name Material
Body Ductile iron GGG50 with WRAS FBE coating
Stem Carbon steel with galvanization, SS420, SS304, SS3316
Wedge disc Ductile iron GGG50 overall EPDM rubber coasting
handle Thin iron, ductile iron
Wedge nut Ductile iron, brass
Ductile iron Gate Valve Features:
1. Ductile iron body has more stronger tensile strength, not easy to be broken
up.
2. Gland on top design can replace the seal ring easily without cutting the
water supply.
3. 3 "O"type ring seal can reduce the friction resistance when opening and
closing.
4. Easy handling and reliable sealing.

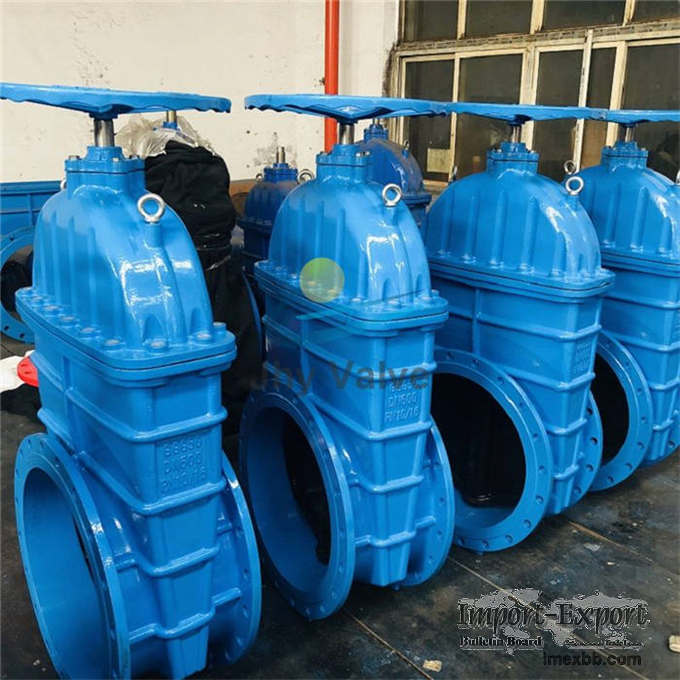

24 Inch DN600 Ductile iron BS DIN F4 Soft Seal Gate Valve
Enlarge Click to Enlarge
