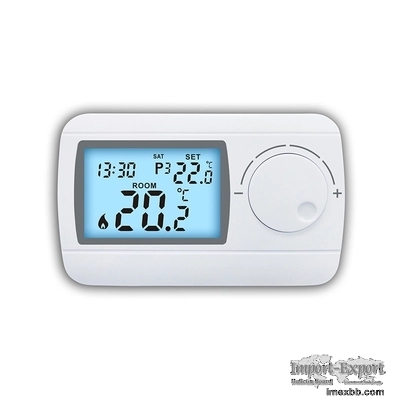

230VAC Digital Programmable HVAC Thermostat For Room

Product Description
HVAC Thermostat , Programmable Thermostat , Room Temperature Digital Room
Thermostat


ISO certifications .pdf



Parameter :



Name: E7-L
Temperature Range (°C): 0°C-40°C in 0.1°C
Control Temp.Range (°C): 5°C-35°C in 0.5°C
Switchable Voltage: 230 V AC; 50 Hz
Switchable Current: 6 A (2 A inductive load)
Programmability: Programmable
Temp.Meas.Accuracy: ±1°C (at 20°C)
Defrosting Temperature: +7°C
Power Method: 2 x AA 1.5V Lithium batteries
Switch: HEAT/OFF/COOL MODE Switch
Dimensions: 130 x 80 x 28 mm


Features:



1. Large LCD display with backlight ;
2. Permanent user setting retention during power loss ;
3. Can control valve and boiler at the same time;
4. Optional type of control for different heating application including room
thermostat; floor thermostat or room thermostat with floor limitation;
5. Optional programming Period: 7 individual day programming with 48 separate
time to select economic or comfort mode.(Every half hour as a period of time)
/cancel the programming function.

Packaging:



1. Inner package:Chinese/English/neutral package,special requirements based on
clients.

2. Outer package:standard exporting package,special requirements based on
clients.

3. One pcs per box.

4. Professional Perfomance Thermostat supplier.

5. 1 pcs in a color box, 8 pcs in a inner box, 2 inner boxes into one outer
carton.
