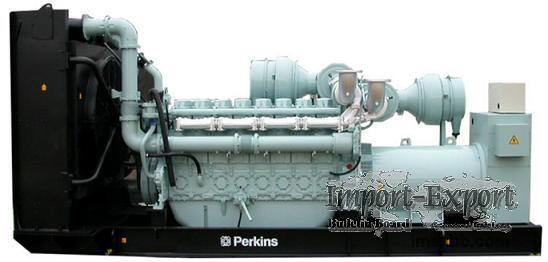

2250KVA 1800KW PERKINS DIESEL GENERATOR SET

Prime power:1800KW/2250KVA
Standby power: 1980KW/2475KVA
Engine model:416-61TRG3
Rated voltage: 230V/400V
Cylinder: 12 V type
Cycel: 4 Stroke
Aspiration: Turbocharged
Broe*Stroke:160*190mm
Compressi , on rateio:18.2:1
Speed Governor: Mech
Cooling system; Forced water cooling cycle
Lube oil: 61.12L
Consumption:205g/kw.h
Startup mode: DC24
Control Panel: Smartgen/Deepsea
Alternator:Stamford,Marathon,
Leroysomer.Ev , o Tech,EngGA etc
Excitation mode: Brushless self excitation
Voltage range:≥5％
Voltage fluctuation range:≤±5％
Frequency:50Hz
Rated speed:1500rpm
Phase: 3phase 4 wire
Power factor: 0.8
Insulation grade: H
Protection level:IP23
Warranty: 1 year
Size:5900*2350*2600mm
Weight:15650kgs

Minimum Order: 1 sets
