220V 7kw Capping Filling Machine Vacuum , 100ml Jam Jar Filling Machine

Product Description

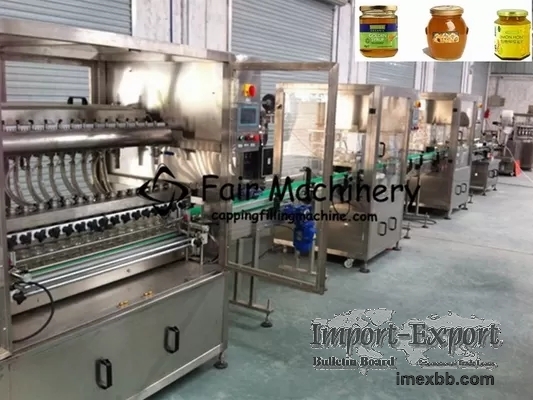

glass jar vacuum filling capping machine production line



This production line is a new generation of automatic filling vacuum capping
production line developed by our company with many years of production
experience and absorbed the world's advanced technology. It adopts servo piston
metering method, the piston is driven by a servo motor to reciprocate, which
can realize variable-speed (settable) filling, high filling quantitative
accuracy, linear positioning of the bottle, strong compatibility, convenient
adjustment, electrical and pneumatic components are selected from the world
Well-known brand, controlled by PLC with man-machine interface (touch screen),
reasonable design, compact structure and beautiful appearance. It has the
characteristics of accurate measurement, strong compatibility, stable and
reliable performance, high degree of automation, simple operation and
convenient maintenance. It is widely used for filling and capping of various
pastes and sauces (vacuum capping method and ordinary capping can be selected
for capping), such as edible oil, honey, syrup, jam, peanut butter, sesame
paste, tomato sauce, etc.



The main performance characteristics of the equipment and the use of materials:

1. The frame of the whole machine is made of SUS304 stainless steel, and all
the material parts of the equipment are made of SUS304 high-quality stainless
steel and food-grade plastic, which is clean and hygienic, and meets the
requirements of food hygiene and safety;
2. The whole machine is controlled by the integration of machine, electricity,
and gas, with automatic bottle feeding and positioning functions, simple
operation and convenient maintenance; the machine is equipped with a lack of
bottle no filling, automatic liquid level control and feeding function;
3. The filling head is equipped with an anti-drip device, and the filling does
not drip;
4. The filling and dosing mechanism is fast and flexible, and the disassembly
and washing are simple and quick;
5. Accurate measurement: Servo motor drives the piston to move back and forth,
and the positioning of the piston movement is accurate, thus ensuring high
filling accuracy;
6. Convenient adjustment: To adjust the filling volume, you only need to change
the parameters on the touch screen, which is easy to operate.





Technical parameters:
Model FFC-12A-1
Filling capacity (ML) 100-1000ml
Filling speed (BPM) 20-50B／Min
Power supply (VAC) 220V 380V 50-60Hz
Power (KW) 7.0
Air consumption (MIN) 4KGS×30LITER
Dimensions (MM) 5000x900x2200
Net weight (KG) 1500




220V 7kw Capping Filling Machine Vacuum , 100ml Jam Jar Filling Machine 0



220V 7kw Capping Filling Machine Vacuum , 100ml Jam Jar Filling Machine 1



220V 7kw Capping Filling Machine Vacuum , 100ml Jam Jar Filling Machine 2





Sample:
220V 7kw Capping Filling Machine Vacuum , 100ml Jam Jar Filling Machine 3
