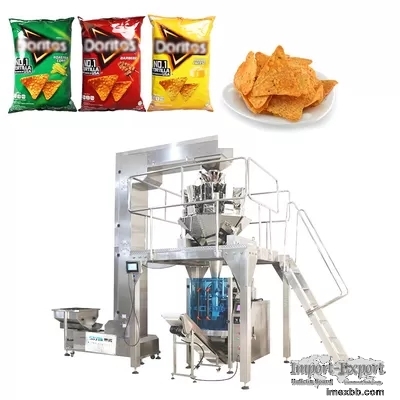

220V / 380V Vertical Automatic Packing Machinery Filling And Sealing Bag Ca

PRODUCT DESCRIPTION
Customized automatic vertical bag making, weighing, filling and sealing candy,
melon seeds, jelly packaging machinery



Combined parts

1.SN series main frame 2.10/14 heads weigher

3.Z type bucket elevator 4.Vibration feeder



Facture:



1. PLC control with stable,reliable biaxial high accuracy output and color touch
screen, bag-making, measuring, filling, printing, cutting , finished in one
operation.

2. Separate circuit boxes for pneumatic control and power control. Noise is low,
and the circuit is more stable.

3. Adjustment of bag deviation just needed to be control the touch screen.
Operation is very simple .

4. External film releasing mechanism: simpler and easier installation of packing
film.

5. High-sensitivity photoelectric eye tracking and digital input of sealing and
cutting positions for more accurate sealing and cutting positions.
6. Close down type mechanism , defending powder into inside of machine.



Quick Details:



1. Widely use in daily necessities, cosmetics, food, medical agriculture
pastoralism etc many industries.

2. Adjust width of bag forming according to the product height width.

3. With waste collection, make the enviroment neat and clean.

4. Automatic counting is available to facilitate manual entry into the box.

5. The packaging material is consumable.

6. Packaging machine can be adapted to specific requirements.



Application

It’s suitable to use in packing the high accuracy and easy fragile material ,such
as:puffy food.crispy rice,jelly,candy,pistachio, apple SNices,dumpling,chocolate ,
pet food,small hardware,Medicine,etc.



Specifications:



Model SN -420/520/720/820
Packing Speed 5-60 pack/min
Max width of roll film 420mm/520mm/720mm/820mm


Bag length
80-320mm/80-420mm/100-500mm/100-550mm

B , ag width

50-200mm/50-250mm/100-350mm/180-400mm ,

Packing Size L*W*H 60-280 * 60-200 * 30-100 mm
Power Supply 220/380V 50/60Hz
Power 5.5KW
Machine size 1388*1116*1536 mm
Machine Weght Approx 500kg


Auxiliary equipment



Feature
SN series main frame

Power Supply 220/380V 50/60 Hz
Power Approx5.5 KW
Transmission method Z-Lift Loader
Metering equipment 0/14 head computerized combination scales
Packing Film OPP, CPP, PE, PET


Machine Details:



1. Horizonal design, fully automatic packing shrinking line 220V / 380V
Vertical Automatic Packing Machinery Filling And Sealing Bag Candy 0
2.Dosing device

Multiple combination scales mainframe

220V / 380V Vertical Automatic Packing Machinery Filling And Sealing Bag Candy 1
3. Auxiliary equipment

Customized operating platform

220V / 380V Vertical Automatic Packing Machinery Filling And Sealing Bag
Candy 2
4.Auxiliary equipment

Z-Lift Loader

220V / 380V Vertical Automatic Packing Machinery Filling And Sealing Bag Candy 3
5. Auxiliary equipment Finished product conveyor belt 220V / 380V Vertical
Automatic Packing Machinery Filling And Sealing Bag Candy 4
6. Self-locking gimbal

Move at any time as required, press to self-lock and lock at any time

220V / 380V Vertical Automatic Packing Machinery Filling And Sealing Bag Candy 5
6.Multi-purpose machine for a variety of products
220V / 380V Vertical Automatic Packing Machinery Filling And Sealing Bag Candy 6

220V / 380V Vertical Automatic Packing Machinery Filling And Sealing Bag Candy 7
