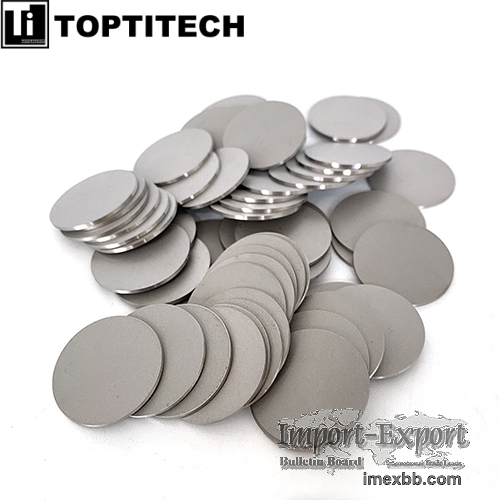

20um 316L microporous stainless steel filter disc

20um 316L microporous stainless steel filter disc is a type of filter element
used for the filtration of liquids and gases. The disc is made by molding and
sintering stainless steel powder together to create a porous structure. The
resulting structure has a high filtration efficiency and a narrow pore size
distribution, which allows for efficient filtration of small particles and
impurities.

20um 316L microporous stainless steel filter disc is a type of corrosion-
resistant steel that contains molybdenum, which improves its resistance to
corrosion and pitting. This makes it a good choice for applications where the
filter element will be exposed to corrosive fluids or environments.

Parameters
Brand: TOPTITECH
Material: 316L stainless steel
Max pressure: 5MPa
Max temperature: 600 degree
Types:disc
Diameter Size: 30 mm
Height Size: 2mm
Pore Size: stainless steel 20um


Three important aspects of the filter
Pore size: The pore size of the filter disc can be customized according to the
specific application requirements. The pore size typically ranges from a few
microns to several hundred microns.


Filtration efficiency: The sintered porous stainless steel filter disc can
achieve high filtration efficiency due to its uniform pore structure. It can
effectively remove particles and impurities from liquids and gases, including
bacteria, viruses, and other contaminants.


Durability: The filter disc is made of durable stainless steel, which makes it
highly resistant to corrosion and wear. It can withstand high temperatures,
pressures, and aggressive chemicals without degrading over time.


Application
A. Solid gas separation
J. Cooling
B. Muffler, silencer
K. Diffuse, evenly spread, or uniform gas, oil, or heat
C. Air purification
L. Breathable protection
D. Filtering oil
M. Pharmaceutical, medicine
E. Dedusting, Isolation dust, dust proof
N. Chemical
F. Gas-oil dissociation
O. Chemical fiber
G. Gas liquid separation
P. Filtration for high temperature environment
H. Moisture proof
Q. High pressure reverse wash filtering
I. Heat insulation
R. Acid and alkali corrosion environment filtering

Minimum Order: 1 pieces
