208V Cummins Diesel Generators

PRODUCT DESCRIPTION

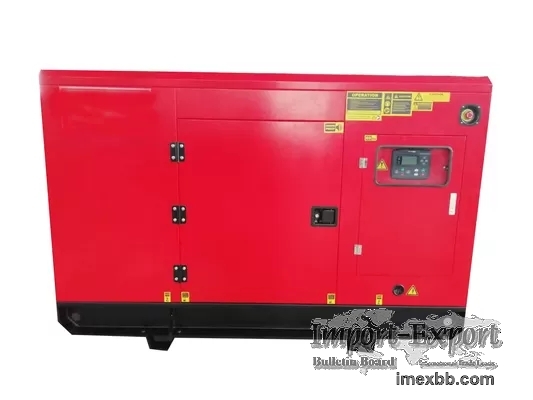

28kW / 35kVA Cummins Diesel Generator Set BULK Production Cummins 4B3.9G12
Silent Diesel Genset 60Hz 208V



208V Cummins Diesel Generators 0



DCEC Cummins Series Diesel Generating Set:

Genset output range: 20kW to 400kW
Engine types: 4B, 6B, 6C, 6L, QSM, 6Z, QSZ series
Manufacturer: Dongfeng Cummins Engine Co., Ltd.
CCEC Cummins Series Diesel Power Generating Set:

Genset output range: 200kW to 1200kW
Engine types: N855, M11, QSNT, K19, K38, QKS38, K50 series
Manufacturer: Chongqing Cummins Engine Co., Ltd.
208V Cummins Diesel Generators 1

TECHNICAL DATA:

Technical Specification:
Generator Set Specification
Genset Model TG39CD6 TG39CSD6
Open Silent
Frequency 60Hz
Rate Speed 1800RPM
Voltage 208/120V
Phase 3 Phase, 4 or 12 Wires
Rate Current 97.2A
Prime Power 28kW / 35kVA
Standby Power 31kW / 39kVA
Engine Model Cummins 4B3.9G12
Alternator Model Stamford PI 144H
Controller DEEPSEA DSE6020
Weight & Dimensions
Length (mm) 1750 2300
width (mm) 840 980
Height (mm) 1360 1460
Weight (kgs) 870 1230
Engine Specifications
Brand DCEC Cummins
Engine Model 4B3.9G12
Prime/Standby power 33kW / 36kW
Injection Indirect
Aspiration Naturally Aspirated
No. of cylinders 4
Speed 1800RPM
Bore of Stroke (mm) 102 x 120
Displacement (L) 3.9
Cooling Water Cooled
Compression Ratio 18:1
Engine Oil capacity (L) 7.2
Coolant Capacity ( In radiator) 7.2
Governor Electric
Air Filter Dry Element
Fuel consumption @ 60Hz
100% Load (L/h) 9.4
75% Load (L/h) 7.5
50% Load (L/h) 5.5
25% Load (L/h) 4.0
Alternator Specification
Brand Cummins Generator Technologies
Model PI 144H
Rate Output (kVA) 35
Speed 1800RPM
Pole 4
Winding Connections Star
Insulation Class H
Enclosure IP23
Altitude (m) ≤1000
Voltage Regulator AVR
Steady State Voltage Regulator 1%
Bearing Single
Controller System
Brand Deepsea
Model DSE6020
Functions Control with AMF module
Static with auto. battery charger
Emergency stop push button
ATS Connection
OPTIONAL EQUIPMENTS
ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water
Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type,
3000Hours Spare Parts




Cummins Genset Standard Configuration:

Engine system

Heavy-duty diesel engine
Four-stroke, water-cooled design
12V and 24V starter and charging alternator
Cooling radiator and fan
Maintenance-free battery with lead and cable
Flexible fuel connection hoses and manual oil sump drain valve
Exhaust silencer pipe
Electronic governing system
Fuel injection pump
Electric motor starting system
Forged steel crankshaft, cast iron cylinder and replaceable wet type
cylinder liner
Low fuel consumption and low discharge
Easy installation and maintenance


Alternator

Chinese brand, brushless, single bearing, flexible disc design
Insulation class: H
Protection class: IP23
Self-exciting and self-regulating
Three-phase, four-wire configuration
AVR (Automatic Voltage Regulator)


Soundproof Canopy

All canopies designed with modular principles
All metal canopy parts painted with electrostatic polyester power paint
Soundproof design ensures noise levels are controlled within a small range
Easy to lift and move
Easy to maintain and operate
Base Frame
Base frame includes positions for forklift and crane operation
Integral fuel tank included
Daily fuel tank continuously supplies for 8-24 hours (According to customer
requirements)
Fuel tank is easy to maintain and clean
Anti-vibration pads are flexed between the engine and alternator.


Control system

Controller brand options including Deepsea, ComAp, Smartgen, Mebay
Control panel with English interface, LED screen and touch buttons for ease
of operation.* Controls, monitors, and protects the generator set,
including:
High water temperature alarm
Low oil pressure alarm
Over and under speed alarm
Over current alarm
Under/over generator voltage alarm
Start and stop failure alarm
Low and high battery voltage alarm
Charge failure alarm
Emergency stop function
208V Cummins Diesel Generators 2

Frequently Asked Questions (FAQ):

How do I purchase your product?
You can place an order directly through email, WhatsApp or Wechat.
Do buyers need to contact the seller after placing an order?
No, we will contact you as soon as possible and begin preparing your
generator set for production.
How long does it take to receive the product after placing an order?
7-15 days from the deposit being received. After your order is placed, we
will contact you and provide you with the specific timeframe.
What is the minimum order quantity (MOQ)?
The MOQ is 1 unit.
Are you a manufacturer or trading company?
We are a manufacturer with three large, owned factories as well as R&D teams
and foreign trade teams.
How is spare parts supply for generators provided?
During the warranty period, we can send you free spare parts by DHL.
What type of diesel fuel is used?
#0 diesel fuel is used.
If you are interested in TECGEN generator sets, please feel free to contact
us. Welcome to visit TECGEN!
