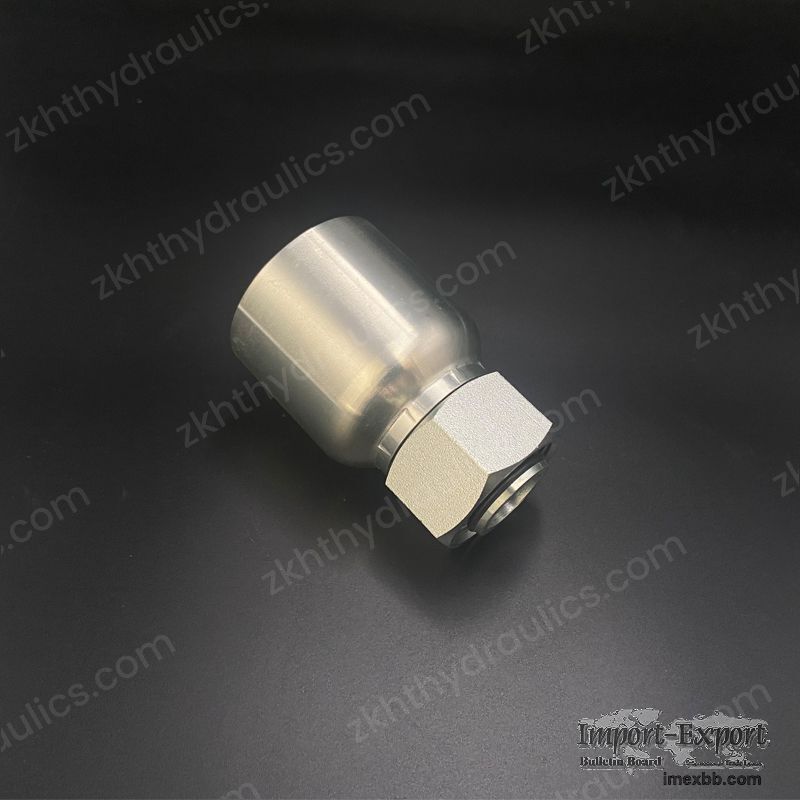

20411RW One Piece Fittings

H20411-TRW HT Hydraulics Since 1987 Hydraulic Hose Fitting -One Piece
Fittings
Metric Female 24° Cone O-ring L.T.ISO 12151-2-DIN3865
Part No. Thread HOSE BORE TUBE O.D DIMENSIONS
DN DASH B W
H20411-12-04TRW M12X1.5 6 04 6 22 17
H20411-14-04TRW M14X1.5 6 04 8 23.5 17
H20411-16-04TRW M16X1.5 6 04 10 20.5 19
H20411-16-05TRW M16X1.5 8 05 10 25.5 19
H20411-18-05TRW M18X1.5 8 05 12 23.5 22
H20411-18-06TRW M18X1.5 10 06 12 26.5 22
H20411-22-08TRW M22X1.5 13 08 15 28.5 27
H20411-26-08TRW M26X1.5 13 08 18 30 32
H20411-26-10TRW M26X1.5 16 10 18 32 32
H20411-30-10TRW M30X2 16 10 22 32.5 36
H20411-30-12TRW M30X2 19 12 22 33.5 36
H20411-36-12TRW M36X2 19 12 28 35 41
H20411-36-16TRW M36X2 25 16 28 36 41
