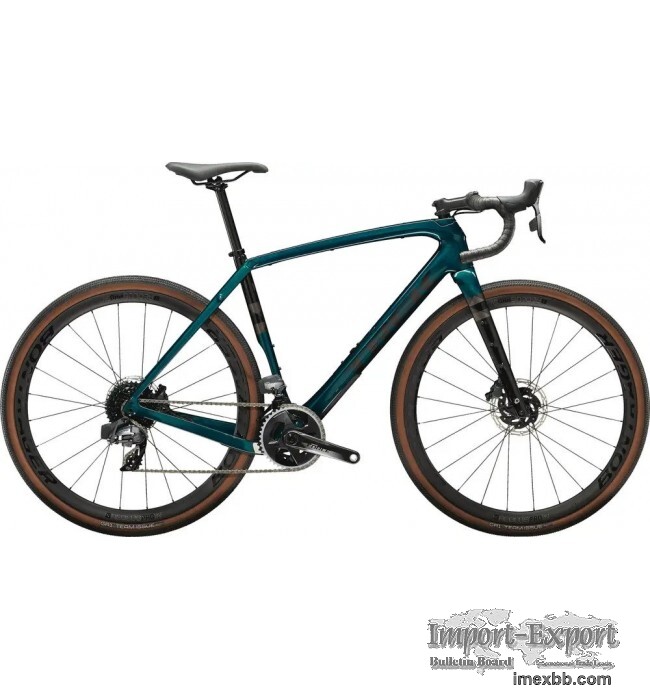

2023 Trek Checkpoint SL 7 eTap Road Bike

A carbon frame gravel bike with high-end components and hydraulic disc
brakes.

SPECIFICATION

Frame 500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube
storage door, 3S chain keeper, T47 BB, rack and fender mounts, integrated
frame bag mounts, flat mount disc, dropper post compatible, 142x12mm thru
axle

BB Standard: T47, Threaded

Tire Clearance: 45c

Color: Dark Aquatic / Carbon Smoke

Bottom Bracket SRAM DUB, T47 threaded, internal bearing

Stem Size: 49, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm
length; Size: 52, 54, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree,
80mm length; Size: 56, 58, Bontrager Pro, 31.8mm, Blendr compatible, 7
degree, 90mm length; Size: 61, Bontrager Pro, 31.8mm, Blendr compatible, 7
degree, 100mm length

Handlebar Size: 49, Bontrager Elite Gravel, 38cm width; Size: 52,
Bontrager Elite Gravel, 40cm width; Size: 54, 56, Bontrager Elite Gravel,
42cm width; Size: 58, 61, Bontrager Elite Gravel, 44cm width

Saddle Size: 49, 52, Bontrager Verse Comp, steel rails, 155mm width; Size:
54, 56, 58, 61, Bontrager Verse Comp, steel rails, 145mm width

Seatpost Bontrager carbon, 27.2mm, 8mm offset, 330mm length

Rims Front: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm
rim width, 100x12mm thru axle, Rear: Bontrager Aeolus Pro 3V, OCLV Carbon,
Tubeless Ready, 25mm rim width, SRAM XD-R driver, 142x12mm thru axle

Tires Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing,
aramid bead, 120 tpi, 700x40c

Disk Rotors SRAM CenterLine X, centerlock, round edge, 160mm

Rear Derailleur SRAM Force eTap AXS, 36T max cog

Front Derailleur SRAM Force eTap AXS, wide, braze-on

Crank Size: 49, SRAM Force, 43/30, DUB Wide, 165mm length; Size: 52, SRAM
Force, 43/30, DUB Wide, 170mm length; Size: 54, 56, SRAM Force, 43/30, DUB
Wide, 172.5mm length; Size: 58, 61, SRAM Force, 43/30, DUB Wide, 175mm
length

Shifters SRAM Force eTap AXS, 12 speed

Cassette SRAM XG-1270, 10-36, 12 speed

Chain SRAM Force, 12 speed

Brakes Hydraulic Disc

Minimum Order: 1 pieces
