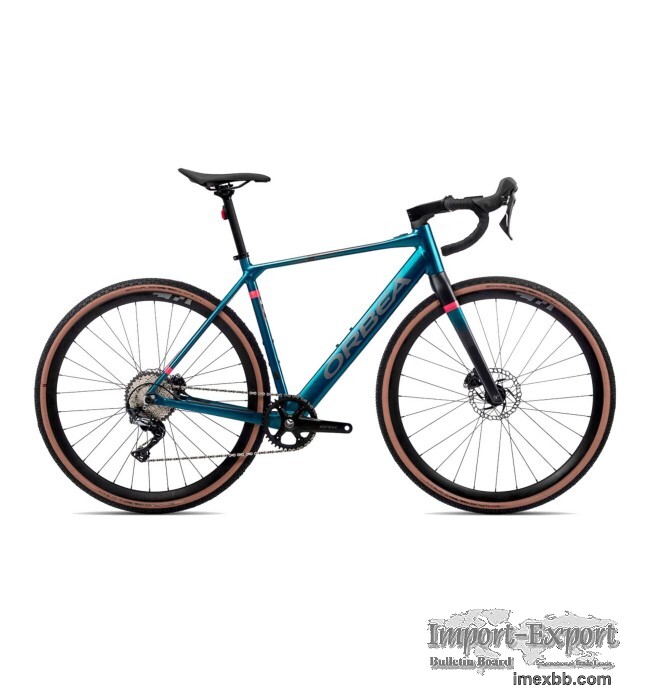

2023 Orbea Gain D30 1X E-Road Bike

Rider and bike working in perfect synergy, you are breathing hard and your
heart is pumping but you are in control and having fun. Gain brings enough
power to turn gravity down a bit but not dominate the ride or remove the
satisfaction. The natural assistance blends invisibly into the background,
leaving you feeling like you are fitter than ever. This isn’t about riding
faster, it isn’t even about riding further, this is just about having more
fun each and every time you ride.



SPECIFICATION

FRAME Orbea Gain Hydro 6061 Hydroform Aluminum 2021, ICR cable routing,
Forged BB, safety screw, 135x9 QR, Flat Mount disc mount, 700x40 maximun
tyre, 1" 1/2 semiintegrated head set, 41x86,5 Pressfit botton bracket.

FORK Gain Hydro carbon fork, full carbon, 1-1/8" - 1.5" tappered head
tube compatible, 700x40 maximun tyre, flat mount disc mount, Thru axle
12x100mm

HEADSET Acros Alloy 1-1/2" Internal Cable Routing

CRANKSET Shimano GRX RX600 40t

CASSETTE Shimano CS-M8000 11-40t 11-Speed

REAR DERAILLEUR Shimano RX812 GS

CHAIN KMC X11

HANDLEBAR OC Gravel GR30, Reach 80, Drop 125

STEM OC Road Performance RP21, -6º

SHIFTERS Shimano ST-RX600

BRAKES Shimano RX400 Hydraulic disc

BRAKES CONFIGURATION

WHEELS Alloy, Tubeless, 700c, 21c, 32H

TYRES Schwalbe G-ONE Bite, 40-622, 700x38C, Performance Line RaceGuard,
TLE, ADDIX Classic Skin

FRONT WHEEL AXLE Orbea Thru Axle 12x100mm M12x2 P1 Hollow

SEATPOST Alloy, 27.2mm, Setback 0, for integrated light

SADDLE Fizik Aliante R5

FRONT LIGHT Front position light, on display holder, COB Led, On/Off,
60 Lumen, ECE50.

REAR LIGHT Lezyne FENDER STVZO seatpost mounting 11 lumens

HANDLEBAR PLUGS Orbea Eva

MOTOR Mahle motor hub X35 Plus

BATTERY Mahle 36V/6.9A 248Wh ANT+

RANGE EXTENDER N/A

DISPLAY Mahle Pulsar One monochrome ANT+ LEV

CHARGER Mahle X35

REMOTE Mahle iWoc ONE
