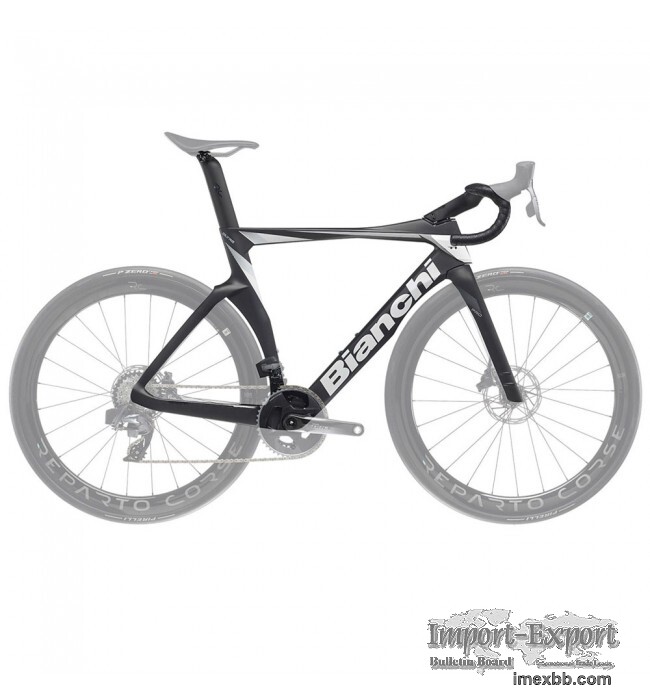

2023 BIANCHI OLTRE PRO FRAME KIT

Bianchi’s electronic-groupset-only Oltre Pro Disc Road Frameset features a
radical frame design that aims to reduce drag as much as possible, with the
aero seatpost and integrated stem / handlebar combination also contributing
to its exceptional aerodynamics.

The carbon frame features dropped and flattened seatstays, a seat tube cut
out that wraps around the rear wheel and a concave down tube for the front
wheel to fit into, all in the pursuit of drag reduction. Air Deflector
fairings on the headtube marry up with the downtube’s sculpted shape and,
along with the large hole in the handlebar, create a low-pressure area
behind, reducing the effect of the wind on the bike and rider for better
aerodynamics. The combined effect of these developments means that Bianchi
claims the new frame saves 17.1 watts at 50kph and is 45 seconds faster
over 40km than the Oltre XR4, their previous aero bike.

Whilst the frame's design certainly concentrates on extracting every ounce
of speed from the rider, this isn’t at the expense of comfort, with
Bianchi’s Countervail carbon technology ensuring that long rides or poor
road surfaces don’t become uncomfortable.

SPECIFICATION

FRAME Oltre PRO carbon w/Bianchi System aero shape, electronic drivetrain
only, headset 1.1/4""-1.1/4"",BB-PressFit 86,5x41mm, integrated seat clamp,
for flat mount caliper, internal cable routing for brakes, thru axle
12x142mm, compatible with 700x30 tire s
FORK Full Carbon aero w/Bianchi System, brakes, integrated head 1.1/4",
flat mount caliper, thru axle 12x100mm, compatible with 700x30 tire
HEADSET Fsa No. 54 - MR137 - ACB 1-1/4"" diam.46.9 x diam.37x7 Fsa TH970R -
MR082R - SL Alloy ACB 1-1/4"" diam.46.8 x diam.34x7
STEM Integrated handlebar Integrated Aero bar, material Carbon, drop
125mm, reach 80mm, Di2 compatible Ext: 90/400 ; 100/420 ; 110/420; 120/440
HANDLEBAR included in the stem
