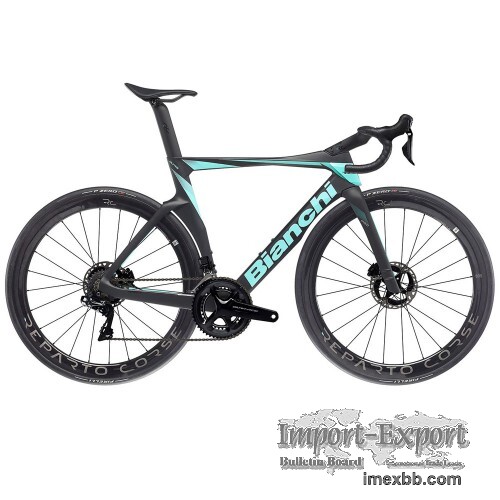

2023 BIANCHI OLTRE PRO DURACE D12 ROAD BIKE
With its sculpted frame, aerodynamic components and range-topping
drivetrain, Bianchi's Oltre Pro Dura-Ace Di2 Disc Road Bike makes no secret
of its quest for speed.

The carbon frame features dropped and flattened seatstays, a seat tube cut
out that wraps around the rear wheel and a concave downtube for the front
wheel to fit into, all in the pursuit of drag reduction. Air Deflector
fairings on the headtube marry up with the downtube’s sculpted shape and,
along with the large hole in the handlebar, create a low-pressure area
behind, reducing the effect of the wind on the bike and rider for better
aerodynamics. The combined effect of these developments means that Bianchi
claims the new frame saves 17.1 watts at 50kph and is 45 seconds faster
over 40km than the Oltre XR4, their previous aero bike.

Whilst the frame's design certainly concentrates on extracting every ounce
of speed from the rider, this isn’t at the expense of comfort, with
Bianchi’s Countervail carbon technology ensuring that long rides or poor
road surfaces don’t become uncomfortable.

50mm deep, tubeless-ready carbon wheels complement the fast frame perfectly
as they are from Bianchi’s in-house brand Reparto Corse, and offer a
suitably aerodynamic profile to the wind that is effective at a wide range
of yaw angles. Frame clearance allows the use of tyres up to 30mm wide.

The pinnacle product in Shimano’s road groupset range, 12-speed Dura-Ace
offers effortless shifting and consistent, powerful braking. The system is
semi-wireless which simplifies cable routing and allows connection to GPS
head units for gear and battery information to be displayed whilst
Shimano’s E-Tube app gives some customisation options. Extra pad clearance
and improved modulation are provided by the Servo Wave technology in the
hydraulic disc brakes for better braking performance and confidence-
inspiring control on the descents.



HIGHLIGHTS

• Bianchi Oltre Pro carbon frame and fork with CV System and Air Deflector

• Bianchi Integrated Aero handlebar

• Shimano Dura-Ace Di2 12-speed electronic groupset

• Shimano Dura-Ace hydraulic disc brakes

• Tubeless-ready Reparto Corse Carbon 50mm wheelset



SPECIFICATION

FRAME Oltre PRO carbon w/Bianchi CV System aero shape, electronic
drivetrain only, headset 1.1/4"-1.1/4",BB-PressFit 86,5x41mm, integrated
seat clamp, for flat mount caliper, internal cable routing for disc brakes,
thru axle 12x142mm
FORK Full Carbon aero w/Bianchi CV System, Disc brakes, integrated head
1.1/4", flat mount caliper, thru axle 12x100mm
HEADSET Fsa No. 54 - MR137 - ACB 1-1/4"" diam.46.9xdiam.37x7 Fsa TH970R -
MR082R - SL Alloy ACB 1-1/4"" diam.46.8xdiam.34x7
SHIFTERS Shimano Durace Di2 12sp hydraulic disc brake
REAR DERAILLEUR Shimano Durace Di2 12sp, RD-R9250, top normal shadow
design, direct attachment, 34T Max Low Sprocket
FRONT DERAILLEUR Shimano Durace Di2 12sp, FD-R9250, DURA-ACE Di2,
brazed-on type, top gear 46-55T, for rear 12-speed
CRANKSET Shimano Durace 12sp, FC-R9200, DURA-ACE hollowtech 2, for
rear 12- speed, 50x34T, Crank Length: 170mm-47/54cm, 172.5mm-55/59cm
BB Shimano SM-BB92-41B , press fit type for road, right & left
adapter, bearing, inner cover
CHAIN Shimano Durace 12sp, CN-M9100
BRAKES Shimano BR-R9270 Hydraulic disc brake included in the shifter
ROTOR Shimano RT-MT900 center lock type w/Ice Tech, 160mm
REARHUB Aluminium alloy 7075, width: 100-142 mm, sealed cartridge bearings,
Brake interface: Center Lock
RIMS Reparto Corse Carbon 50mm profile, 700x21c, XDR body, 3K and UD
high strength carbon fiber, tubeless ready and clincher, nternal width: 21
mm, weight per set: 1.590g
TIRE Pirelli Pzero ™ Race SL TLR , 28-622, 120 tpi
STEM Integrated Aero handlebar, material Carbon, drop 125mm, reach 80mm,
Di2 compatible Ext: 90x400-47/50cm; 100x420-53cm; 110x420-55/57cm; 120x440-
59cm
HANDLEBAR included in the stem
GRIPS Velo Black soft Microfiber tapes+EVA-139 Shockproof 200*3cm
SEATPOST Oltre Full Carbon Aero special dimension seatpost, 20mm
offset, length: 280mm-47cm, 300mm-50/53cm, 350mm-55/59cm
SADDLE Bianchi RC139 carbon, weight 145g
