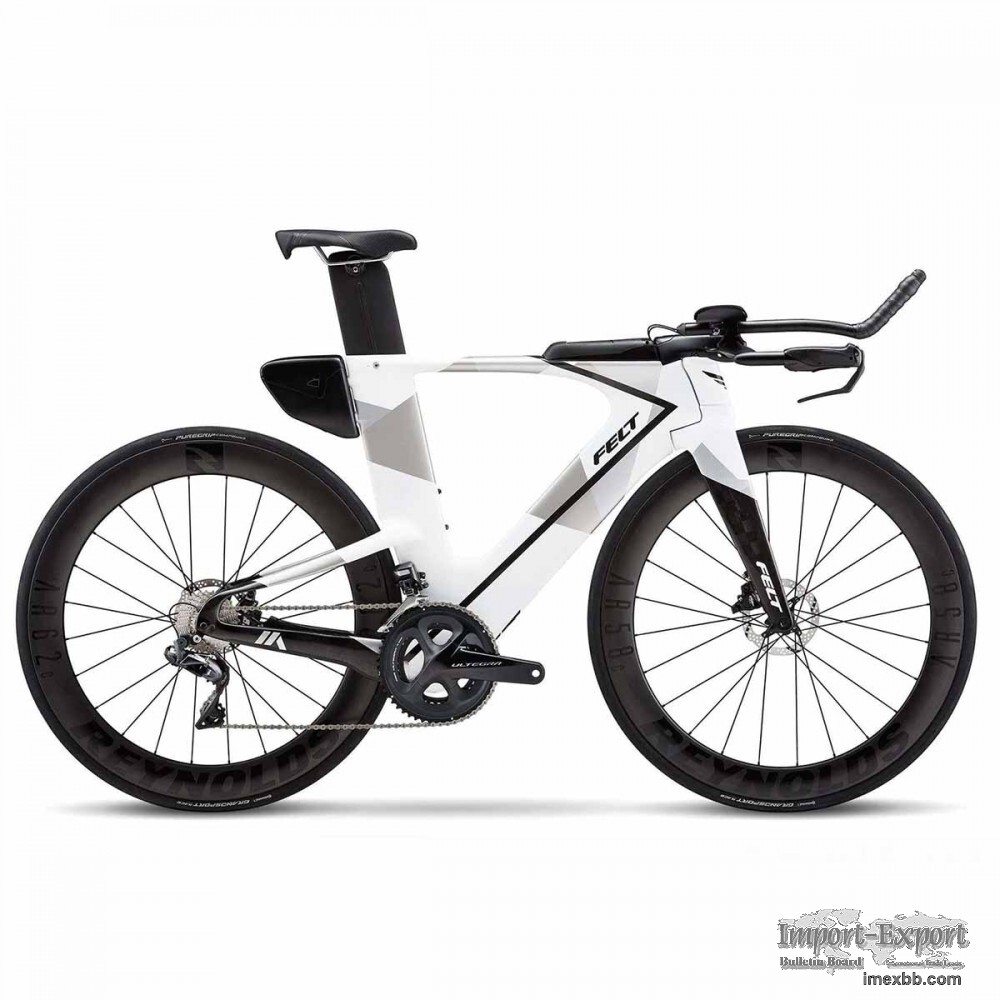

2022 Felt IA Advanced Ultegra Di2 Triathlon Bike

Product Description
2022 FELT IA ADVANCED ULTEGRA DI2
SIZES 5 48, 51, 54, 56, 58cm FRAME Felt IntegratedAero Disc
1.0 UHC Advanced + TeXtreme carbon fiber
FRAME TECHNOLOGIES MMC / InsideOut / Felt CALpac 2.0 top tube storage
with Felt AEROpac 2.0 top tube storage cover BOTTOM BRACKET TYPE
Threaded BSA 68mm
BRAKE TYPE, REAR Disc, Flat Mount 25mm thickness, Ø140mm minimum
rotor DERAILLEUR HANGER TYPE, FRONT Brazed-On integrated backup
plate, non-replaceable, aluminum
DERAILLEUR HANGER TYPE, REAR Standard Mount TA 12x142 TRI/TT,
horizontal, replaceable, aluminum HEAD-TUBE TYPE Felt Aero 1.125"
PROTECTOR TYPE Steerer stop integration for head tube protection / Felt
ChainPlate for chain suck protection / Clear vinyl for chain slap
protection ROUTING TYPE Semi-Hidden convertible for electronic or
mechanical
SEAT POST / CLAMP TYPE Felt Aero TRI InternaLoc 1.0 integrated with
titanium bolts WHEEL TYPE 700c
TIRE MAX (CLEARANCE) 28mm (4mm) FORK Felt IntegratedAero Disc
1.0 - Dagger UHC Advanced + TeXtreme carbon fiber
HEADSET IS (IS-2) AXLE, FRONT TA 12x100
AXLE, REAR TA 12x142, horizontal FORK TECHNOLOGIES Monocoque
construction / Integrated crown race / Felt Dagger carbon fiber cover for
Junction or BlipBox storage and hidden brake hose routing
BRAKE TYPE, FRONT Disc, Flat Mount Ø140mm minimum rotor FORK OFFSET
48, 51cm: 50mm / 54, 56, 58cm: 45mm
HEADSET SPECIFICATION Top Cap: stem integrated / Top Cover: stem
integrated / Bearings: FSA integrated sealed cartridge, MR122 / Spacers: -
/ Compression Device: Felt for carbon steerer tube / Compression Ring: FSA
H2145 / Crown Race: fork integrated AXLE, FRONT SPECIFICATION
Devox AxleTA 123.2 118mm + 5.2mm head, M12 x 1.5P x 13mm, Switch lever
compatible
AXLE, REAR SPECIFICATION Devox AxleTA 172-9 L 163mm + 9mm head,
M12 x P1.0 x 19mm for Syntace X-12, with SL02 Switch hollow lever
DRIVETRAIN 2x11-speed
SHIFTERS Basebar: TRP HD-T910D, hydraulic with integrated Di2 shift
buttons (right hand) / Extensions: Shimano Dura-Ace Di2 SW-R9160, TRI/TT
DERAILLEUR, FRONT Shimano Ultegra R8050 Di2, braze-on
DERAILLEUR, REAR Shimano Ultegra R8050 Di2, short cage CRANK
Shimano Ultegra R8000, 52/36T
BOTTOM BRACKET Shimano BBR60 CASSETTE Shimano Ultegra R8000, 11-
28T
CHAIN Shimano Ultegra HG701 CRANK LENGTH 48, 51cm: 165mm / 54, 56cm:
170mm / 58cm: 172.5mm /
BRAKE LEVERS TRP HD-T910D, hydraulic with integrated Di2 shift buttons
(right hand) BRAKE CALIPERS TRP HD-T910, hydraulic disc, flat mount
BRAKE ROTORS TRP TR-25, Center Lock, 140mm WHEELS Reynolds AR58/62 DB
Custom, Shimano
TIRES Continental Grand Sport Race, 700x25c TIRE COMPATIBILITY
Tubeless Ready
RIMS Carbon HANDLEBAR Basebar: Devox Bayonet 3.1 SuperLite
aluminum / Extensions: Devox Ergomod aluminum
STEM Felt Dagger 31.8 Integrated SuperLite aluminum GRIPS /
TAPE Felt EVA arm pads with anti-microbial cover and Felt Gel tape
HANDLEBAR CLAMP DIAMETER 31.8mm HANDLEBAR WIDTH 48, 51cm: 39cm /
54, 56, 58cm: 42cm
STEM CLAMP DIAMETER 31.8mm STEM ANGLE -6°
STEM LENGTH 110mm STEM PARTS & TECHNOLOGIES Integrated /
Integrated top cap / Integrated headset top cover / Integrated fork cover
mounting / Integrated cable routing
SEATPOST Felt Aero TRI IL 1.0 VM UHC Advanced carbon fiber
SADDLE ISM PS1.0
SEATPOST OFFSET 0mm SEATPOST LENGTH 300mm
SEATPOST PARTS & TECHNOLOGIES Integrated / Compliance Channels with aero
covers / Aero TRI InternaLoc 1.0 seatpost clamping system / Patented
VariMount (VM) saddle rail clamping system EXTRAS Felt BTSpac seat
tube storage box / Shimano SM-BCR2 battery charger / Reynolds tubeless
valve stems (2x75mm) / Compliance Channel aero seatpost covers / Carbon
assembly paste



For information, please contact us via email order.dreambikeshop.com and
via WhatsApp : +6281364524739
Or please visit the site : www.dreambikeshop.com

Minimum Order: 1 pieces
