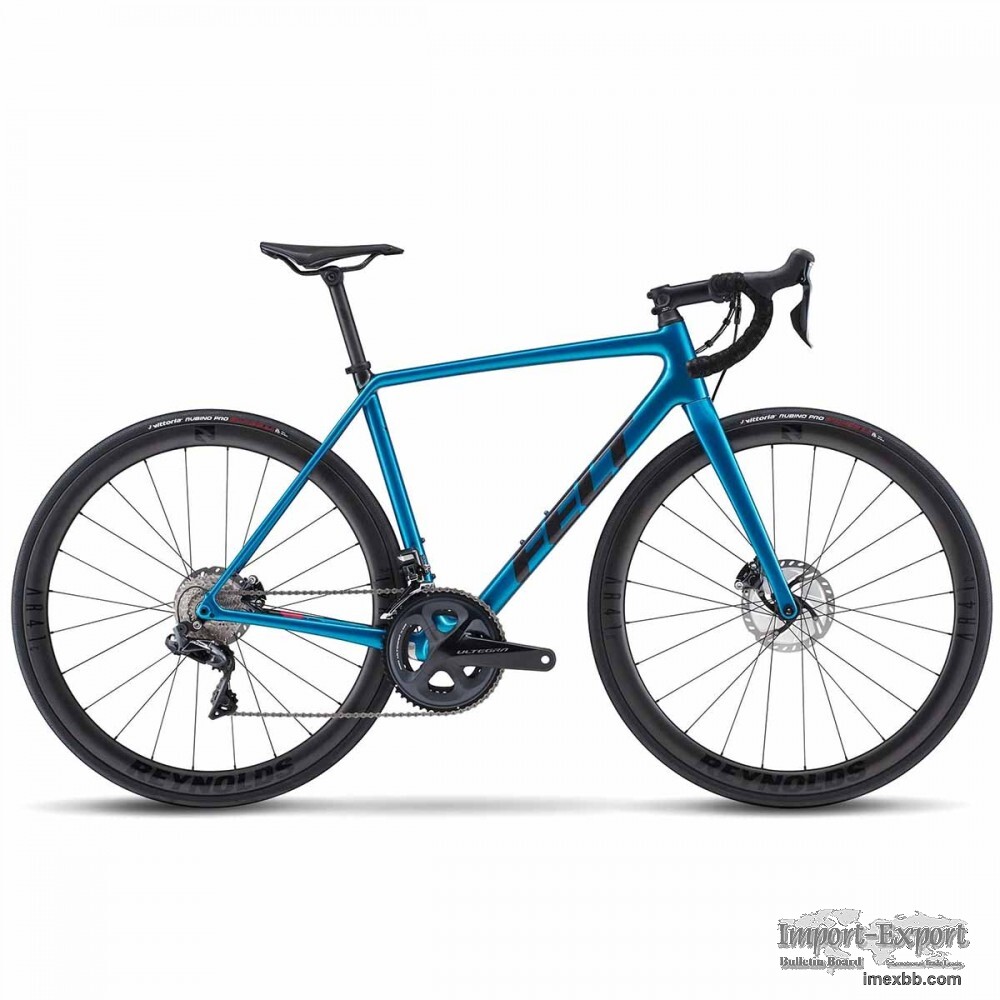

2022 Felt FR Advanced Ultegra Di2 Road Bike

Product Description
2022 FELT FR ADVANCED ULTEGRA DI2
SIZES 7 43, 47, 51, 54, 56, 58, 61cm FRAME FeltRoad 3.0 UHC
Advanced + TeXtreme carbon fiber
FRAME TECHNOLOGIES MMC / InsideOut BOTTOM BRACKET TYPE Press-Fit
BB386
BRAKE TYPE, REAR Disc, Flat Mount 25mm thickness, Ø140mm minimum
rotor DERAILLEUR HANGER TYPE, FRONT Brazed-On integrated backup
plate, non-replaceable, aluminum
DERAILLEUR HANGER TYPE, REAR Standard Mount TA 12x142 road,
replaceable, aluminum HEAD-TUBE TYPE Felt ControlTaper 43, 47cm:
1.125" / 51, 54cm: 1.125-1.25" / 56, 58, 61cm: 1.125-1.5"
PROTECTOR TYPE Felt ChainPlate for chain suck protection / Clear vinyl for
chain slap protection ROUTING TYPE Convertible internal for
electronic or external for mechanical
SEAT POST / CLAMP TYPE Standard 27.2mm post, 30.6mm clamp / 6061
aluminum, steel bolt & nut-bar WHEEL TYPE 700c
TIRE MAX (CLEARANCE) 28mm (4mm) FORK FeltRoad 3.0 UHC Advanced
+ TeXtreme carbon fiber
HEADSET 43, 47cm: IS (IS-2) / 51, 54cm: IS (NO.44) / 56, 58, 61cm: IS
(NO.42) AXLE, FRONT TA 12x100
AXLE, REAR TA 12x142 FORK TECHNOLOGIES Monocoque
construction / Integrated crown race
BRAKE TYPE, FRONT Disc, Flat Mount Ø140mm minimum rotor FORK OFFSET
43, 47cm: 52mm / 51, 54cm: 47mm / 56, 58, 61cm: 43mm
HEADSET SPECIFICATION Top Cap: Felt carbon fiber / Top Cover: Felt
VariableHeight (20mm PC, 4.5mm aluminum) / Bearings: FSA integrated sealed
cartridge / Spacers: FSA nylon (10mm, 2x5mm) / Compression Device: Felt for
carbon steerer tube / Crown Race: fork integrated AXLE, FRONT
SPECIFICATION Devox AxleTA 128.5 123mm + 5.5mm head, M12 x 1.5P x 16mm,
Switch lever compatible
AXLE, REAR SPECIFICATION Devox AxleTA 170-7 L 163mm + 7mm head,
M12 x P1.0 x 19mm for Syntace X-12, with SL02 Switch hollow lever
DRIVETRAIN 2x11-speed
SHIFTERS Shimano Ultegra Di2 R8070 DERAILLEUR, FRONT
Shimano Ultegra R8050 Di2, braze-on
DERAILLEUR, REAR Shimano Ultegra R8050 Di2, short cage CRANK
Shimano Ultegra R8000, 52/36T
BOTTOM BRACKET Token Ninja Lite, BB386 for Shimano (24mm) CASSETTE
Shimano Ultegra R8000, 11-30T
CHAIN Shimano Ultegra HG701 CRANK LENGTH 43, 47cm: 165mm / 51cm:
170mm / 54, 56cm: 172.5mm / 58, 61cm: 175mm
BRAKE CALIPERS Shimano Ultegra R8070, hydraulic disc, flat mount
BRAKE ROTORS Shimano Ultegra RT800, Center Lock, 160/140mm
WHEELS Reynolds AR41 DB Custom, Shimano TIRES Vittoria Rubino Pro
IV, 700x25c
TIRE COMPATIBILITY Tubeless Ready RIMS Carbon
HANDLEBAR Devox DBar.C1 STEM Devox StemR.A1
GRIPS / TAPE Felt VelvetGel tape with 3M reflective base and Felt
Bubble-Tech F-Wing bar end plugs HANDLEBAR CLAMP DIAMETER
31.8mm
HANDLEBAR DROP 125mm HANDLEBAR REACH 65mm
HANDLEBAR WIDTH 43, 47cm: 38cm / 51cm: 40cm / 54 - 56cm: 42cm / 58 - 61cm:
44cm STEM CLAMP DIAMETER 31.8mm
STEM ANGLE -7° STEM LENGTH 43, 47cm: 80mm / 51cm: 90mm / 54,
56cm: 100mm / 58cm: 110mm / 61cm: 120mm
SEATPOST Devox Post.C2 Cap SADDLE Prologo Dimension 143 T4.0
SEATPOST OFFSET 0mm SEATPOST LENGTH 43, 47, 51cm: 294mm / 54, 56, 58,
61cm: 344mm
EXTRAS Shimano SM-BCR2 battery charger / Shimano hose fitting kit (2x
olives and connector inserts) / Reynolds tubeless valve stems (2x55mm) /
Carbon assembly paste
