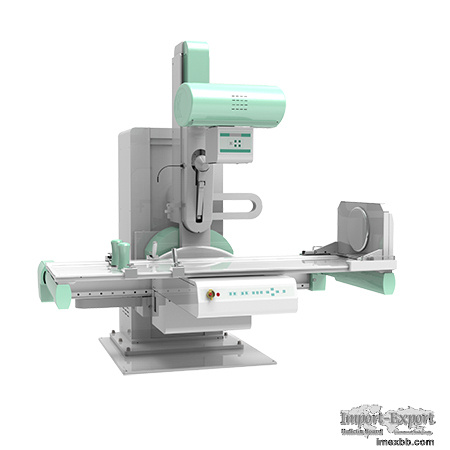

200mA digital radiography systems PLD9600 Digital Radiography System

PLD9600 is the next generation remote controlled RF system designed for
maximum patient throughput and application flexibility
In the demanding environment of your imaging department,PLD9600 is one step
ahead in the direction of efficiency.a perfect mix of flexibility,ease of
use,image quality and connectivity allow you to get the best out your RF
room.

One system,two applications
PLD9600 DRF goes beyond the separation between radiography and
fluoroscopy,the innovative dynamic flat panel detector operates as a full
digital modality for both high resolution radiography and frame rate
fluoroscopy

Multi function
No limit speed control technology
16bits dynamic acquistion range
Large size color LCD touch screen control
Super high frequency inverter technology
17"*17" large size flat panel
Composite target and dual-docus technology

Dynamic digital fast panel technology
The innovative dynamic flat panel detector delivers sharp and accurate images
to support your diagnosis and is not affected by geometric distortion,up tp
30 frames/second acquisition speed in fluoroscopy

17"*17" active area
14"*17" active area
The large 17"*17" active area is suitable for examination of any anatomic
region.


Comparson between flat panel detector and image intensifier

Flat panel detector field of view (non-geometric distortion)
Image intensifier field of view(geometric distortion)

High definition
Optimized image system provieds high-definition images,improves the image's
quality at lowest radiation dose.


Comparson between different gray scales

Lower gray scale image
Our gray scale image

Integrated control system,simplify the workflow
Reprogrammable image processing system together with automatic image optimize
help you get the high definition diagnostic images
With its full DICOM connectivity,PLD9600 easily integrates into PACS networks
for quick and effective workflow management and image distribution

The fully digital image processing and the high dynamic range and allow
extensive possibilities to optimize the exposure and processing parameters
according to your preferences

Filmless environment,you can creat CD's and DVD's directly from the console
with the integrated CD/DVD writer

Image optimization function with compensate the different of x-ray absorption
automatically to increase the visibility of details.

Care about details
The outstanding versatility pf PLD9600 provides a perfect balance between
operational efficiency and patient comfort
*To facilitate the transfer and positioning of patients,the table can be
lowerd down to 60cm,delivering immediate benefit for small patients or
disables persons.
*The AGS function--auto grid selection-automatically selects one of two grids
to match the SID(110cm/180cm)

-90°~90°symmetrical tilting and the speed of 0-6°per second column tilting
technology promise the most comfort of patient

The wide scanning range of spot film device and image system provides
complete patient coverage without the need for longitudinal tabletop
movement,resulting in faster positioning and better patient comfort

Automatic folding ultra-large compressor enlarged the compression
area,decrease the discomfort of patient


Satidfy the requirements of multi body parts
comprehensive
The large tabletop size and the patient weight capacity without restrictions
of table movements open the way to baricatric patients

The field of view can be extended to the edge of table to realize the seat
position exam

Multi-function foot panel can also be used as seat for patient to do special
position radiography

The high frame rate for precise investigation of the upper G.I. tract and
swallow studies

Powerful expanding service
Intelligent
Wigwag range of X-ray tube assembly pillar can achieve +40/-40°,easy to
complete tilt photography inspection

Optional DSA functions is supplied for peripheral angiography
Optioanl equipped with image stitching function for convenient clinical
diagnosis

Minimum Order: 1 sets
