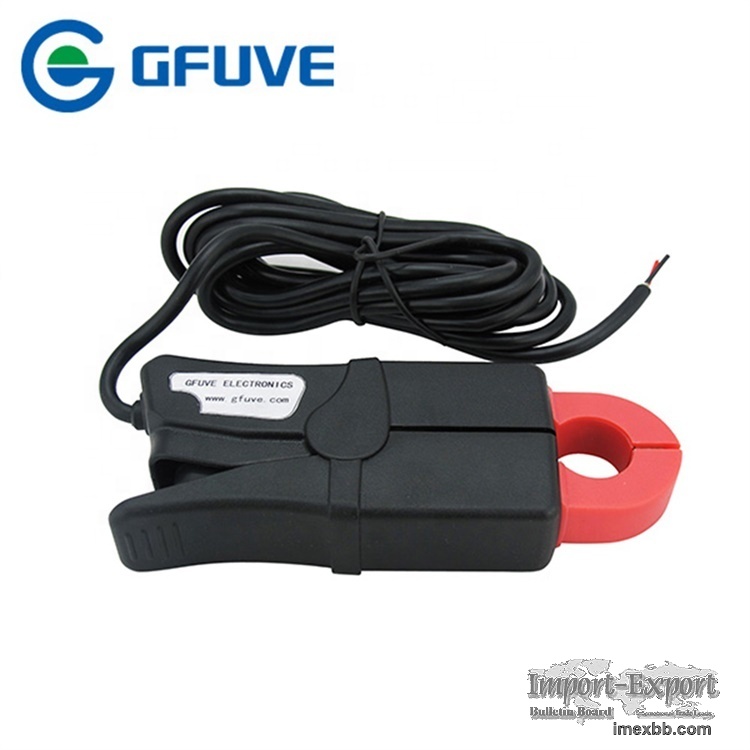

200a Ac Current Clamp XQ20 20mm Hole Split Core Ct Transformer Probe sensor

The model XQ20 clamp on current sensor is suitable for 200A cable online
measurement, the user friendly shape make It easily clamp onto cables or bus bars,
no need to interrupt the power supply and disconnect the circuit in testing, easy
to carry and especially suitable for on-site online testing. It output 0-200mA or
0-100mA AC signal for measuring and analyzing system. This XQ20 current sensor can
customized two stall 10A/100A or 20A/200A, 1V or 2V output. It have been used many
in power quality analyzer manufacturers, high reliability and accuracy 0.1%.

Electrical parameters
Ratio: 1000: 1, 2000:1 or 2500:1 (customized)
Accuracy class: 0.1%, 0.2%
Primary current: 0 - 100A AC, 0 - 200A AC
Secondary current: 0 - 100mA AC, 0 - 200mA AC (customized)
Max. Cont. Input current: 120A, 240A
Load capacity: ≤20Ω , Standard 4Ω
Over voltage category: CAT III 600V
Output signal (AC current): From 0 to 200mA AC at nominal input current
Output signal (AC voltage): From 0 to 5V AC at nominal input current
Signal ratio: 1mA/A, 1mV/A, 10mV/A, 100mV/A
Frequency range: 10Hz-200KHz
Dielectric strength: 3KV 50Hz/60Hz at 1minute
Temperature range: -20°C to +55°C
Output: 2.5 meter cable with D01 connector
Max. voltage not insulated conductors: 720 V
Standard: EN 61010-1, EN 61010-2-032, EN 61010-2-031
IEC60044-1, & IEC61869-2, 600V CAT III
Installation: Clamp type
Output mode: Lead output (2.5m)
Connector: BNC, 4mm banana, Audio plug,customized

Mechanical parameters
Dimensions (L x W x H) (mm): 52.5 x 137.5 x 28
Weight (g): 400
Holding wire diameter (mm): φ20
Max. jaw opening (mm): 20
Jaw color: Red, yellow, blue, green, black
Material: PC+ABS+Polycarbonate, UL94 V0

Minimum Order: 3 sets
