2000A15V Dc power supply for electroplating rectifier

2000A15V Dc power supply for electroplating rectifier
Product Description

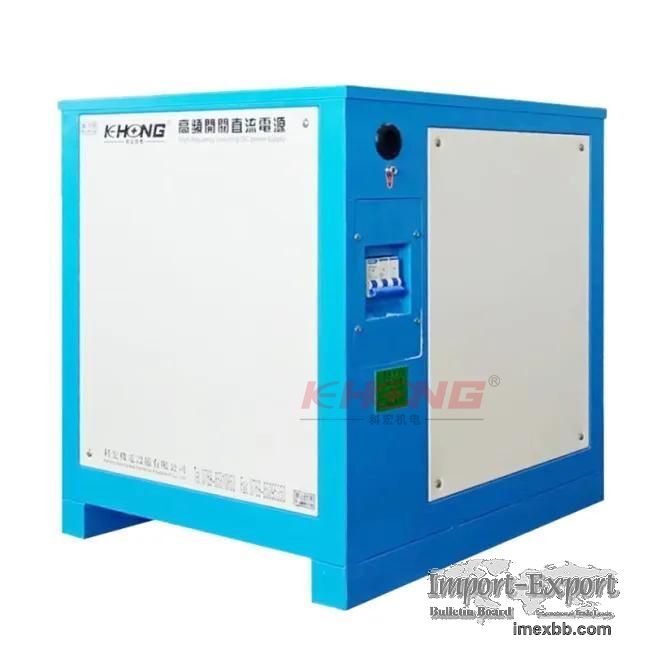

The 2000A15V Dc power supply for electroplating rectifier from Kehong is a
state-of-the-art power solution designed to provide reliable and efficient
high-frequency direct current power. With its advanced technology, robust
construction, and user-friendly features, it delivers consistent and precise
power output for a wide range of applications.
Key Features:
1. Flexible Product Specifications: The rectifier offers a specification of
12V-2000A with various options available for selection. It features an
adjustable DC output voltage of 0-15V and an adjustable output current of 0-
2000A, both displayed digitally.
2. Versatile Input Voltage: The standard input voltage is 380V3P/50Hz, with
customization options available for 220V3P, 415V3P/50~60Hz. It operates within
an error value of ±10%, with a rated power ranging from 0 to 24KW.
3. Dual Output Mode: The rectifier features steady pressure and steady flow
conversion modes. It employs water cooling as the primary cooling mode, with
air cooling available as an optional feature.
4. High Output Frequency: The rectifier provides an output frequency of
20~35KHz, with a ripple coefficient of approximately 3.9%.
