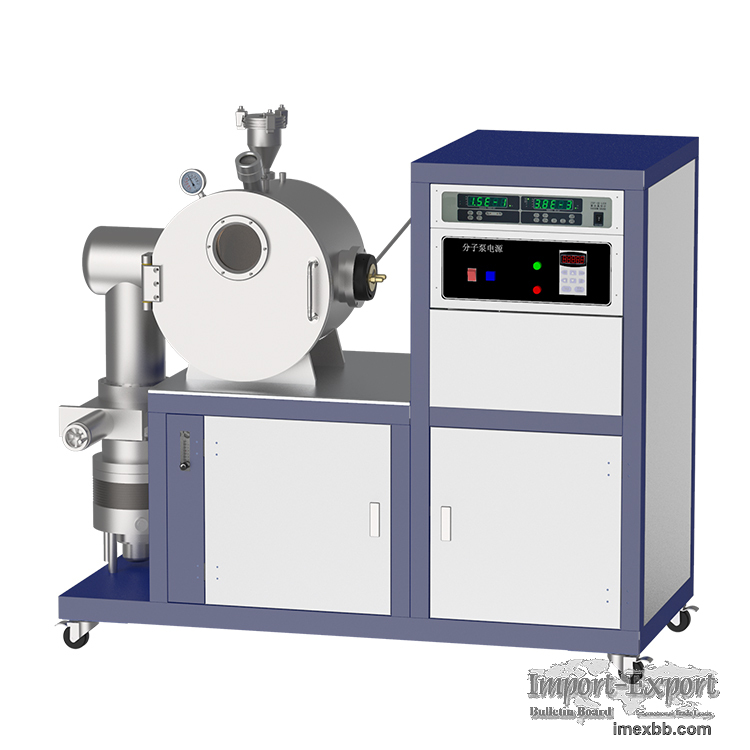

2000℃ 60KW vacuum induction melting furnace with φ60*80mm crucible

Vacuum induction melting furnace CY-IM400-L
This product is a vacuum induction furnace with induction heating, and the melting
temperature of the equipment can reach 2000℃. The induction furnace adopts a
stainless steel water-cooled chamber and is equipped with a quartz observation
window to observe the sample melting condition. It is suitable for sample melting
and heat treatment, phase diagram research. The equipment adopts high-quality high-
frequency induction power supply and supports customized maximum 60KW high-
frequency induction power supply. The equipment is equipped with a high-vacuum
molecular pump set, which can effectively improve the vacuum degree of the
substrate and thus improve the quality of the melting. The equipment is also
equipped with a lifting platform and a flip handle to facilitate the operator to
carry out the casting and sampling operations after melting.
The equipment is comprehensive in function, fast in melting, easy to use, energy-
saving and environmentally friendly, and is very suitable for laboratory research
on metal samples.

Technical parameter
►Inductive power supply
Frequency: high frequency
power: Customizable, maximum 60KW

►Vacuum chamber
Cavity material: stainless steel
cooling system: Water-cooled electrode, water-cooled cavity, water-cooled mold
Cavity size: φ400mm× 400mm
Observation window:main watch window φ120mm, upper watch window φ45mm;
Water cooling interface: φ8mm quick plug interface
Lifting platform: 0 ~ 40mm lifting range
Accessories: Infrared temperature measurement window, Vacuum funnel
►Vacuum system
Product model: CY-GZK103-A
Pumping interface: CF160
Molecular pump: CY-600
Exhaust interface: KF16
Foreline pump: Rotary vane pump
Vacuum measurement: Compound vacuum gauge
Ultimate vacuum: 1.0E-5Pa
Power supply: AC 220V 50 / 60Hz
Pumping rate: Molecular pump: 600L / S; Rotary vane pump: 1.1L / S
Comprehensive pumping performance: 20 minutes Vacuum degree: 1.0E-3Pa

►Crucible:
Graphite melting crucible: Maximum support φ60mm X 80mm
Alumina insulated crucible: Maximum support φ120mm X 90mm

►Other:
Supply voltage: AC220V 50Hz or three-phase 380V
Overall size: 1505mm X 700mm X 1400mm
Total power: Refer to induction power supply
Total Weight: 900kg

Minimum Order: 1 sets
